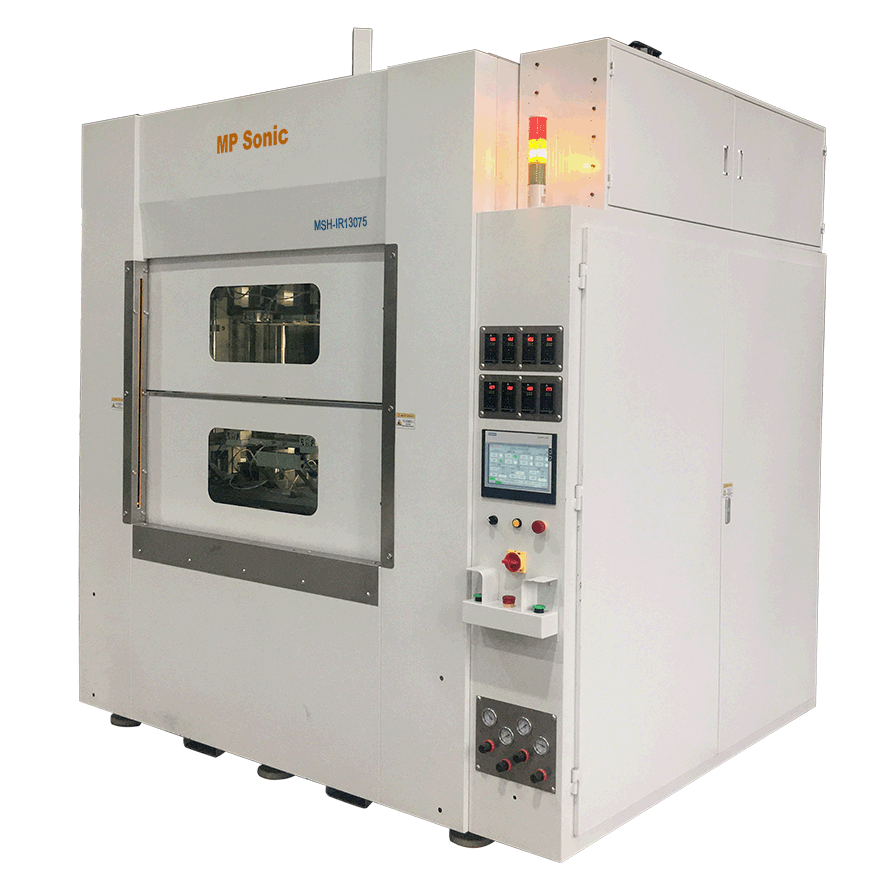

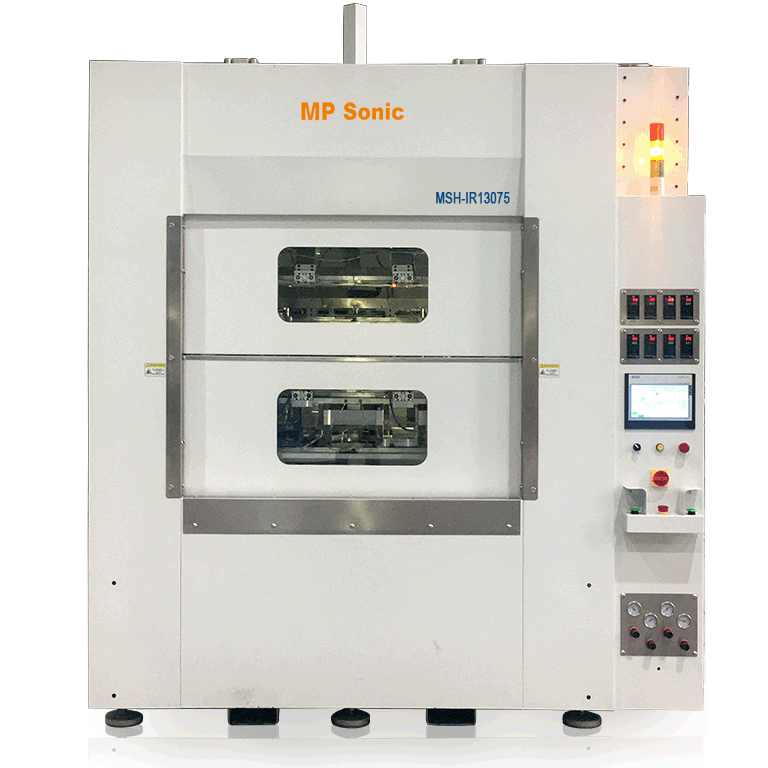

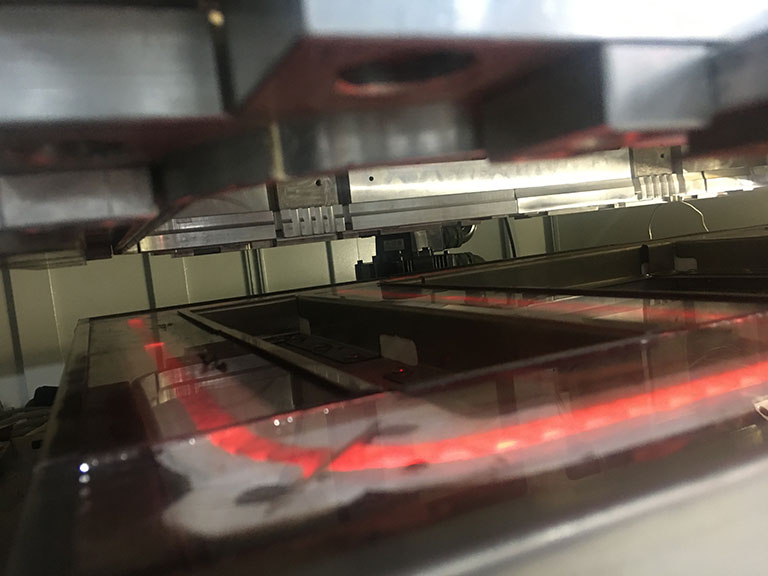

Infrared Welder MSH-IR13075

Description

MSH-IR13075 is a infrared plastic welding machine designed by MP Sonic in super large size specification for the welding of parts in very big measurement fuel tank of vehicle.
MP Sonic infrared welder applies higher power driver type IR control system specially designed by MP Sonic to control heating temperature , which can be applied for hot platen welding also. Machine applies servo motors systems to control toolings motion and force clamp pressure to welded parts during operation in fast and accurate action. Linear ways are applied for tooling moving guide. The jig bed for upper fixture and lower fixture is made by cast-steel plate in anti-deformation design, ensuring machine stability in long duration. Orbital mechanical system is designed on base jig bed for easy parts loading and unloading.

I. Machine Features:

1. PLC control machine sequence for easy operation;

2. HMI set machine in intelligent control;

3. Servo Control machine action in high speed & high precision motion, steps welding control is available for accurate welding management;

4. Linear way guided tooling action in precision;

5. MP Sonic Designed high power driver-type IR control system by current adjustment achieving melting temperature control in high speed, continuous heating power supply and accuracy, as well maximizing the duration of IR lamp or heating material ;

6. 8 sets of temperature control zooms for accurate temperature control;

7. Cast-steel jig bed to keep high repeat precision in stability during long operation period;

8. Auto lubrication system applied to ensure machine smooth & precision motion and long duration, ensure machine ability in high working pressure;

9. Formula System for welding parameters storage for different parts to be welded, easy recall parameters from memory to PLC after tooling changing-over without reset machine parameter one by one, saving time and enhance working efficiency;

10. Welding record system for further history checking;

11. Accessibility for tooling including vacuum, sliding block, clip, ejection, etc, helping easy parts loading and unloading, rectifying the deformation of injected parts and ensuring welding result;

12. I/O condition displaying system to show machine current condition, realizing self-diagnosis and help fault shooting;

13. All-around safety protection system including auto door at operation window, optical fence, safety door at two sides and rear, E-stop buttons, alarm system, etc, ensure machine and human safety during operation;

14. Alarm system for machine error with source of error displaying on HMI help easy fault shooting;

15. Remote service system by MP Sonic I-Cloud New-work serve system, realize fast service with very low cost.



II. Optional Features:

1. Auto Tooling change-over system;

2. UPS;

3. SPC.





III. Specification:

1. Model: MSH-IR13075;

2. Power Source: 380V, 3P, AC, 50/60Hz;

3. Air Source: 0.6~0.8Mpa;

4. Machine Dimension: L2450*W2100*H2950 (mm);

5. Power: 47KW;

6. Welding Area: L1200*W700(mm);

7. Jig Plate Area: L1300*W750 (mm);

8. Working Room Temperature: 10~40℃;

9. Working Room Humidity:5~80%;

10. Weight: About 5.5T.
