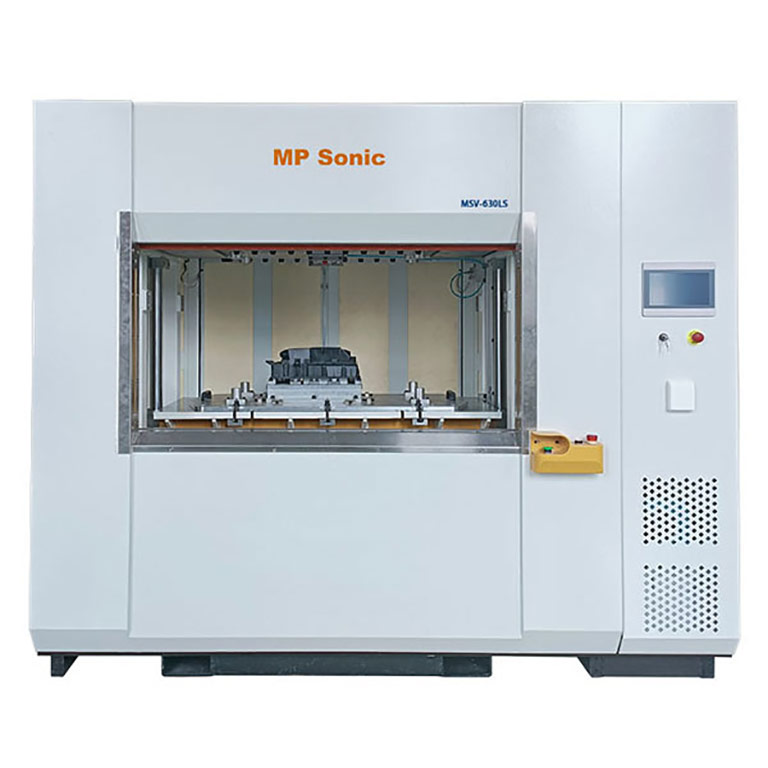

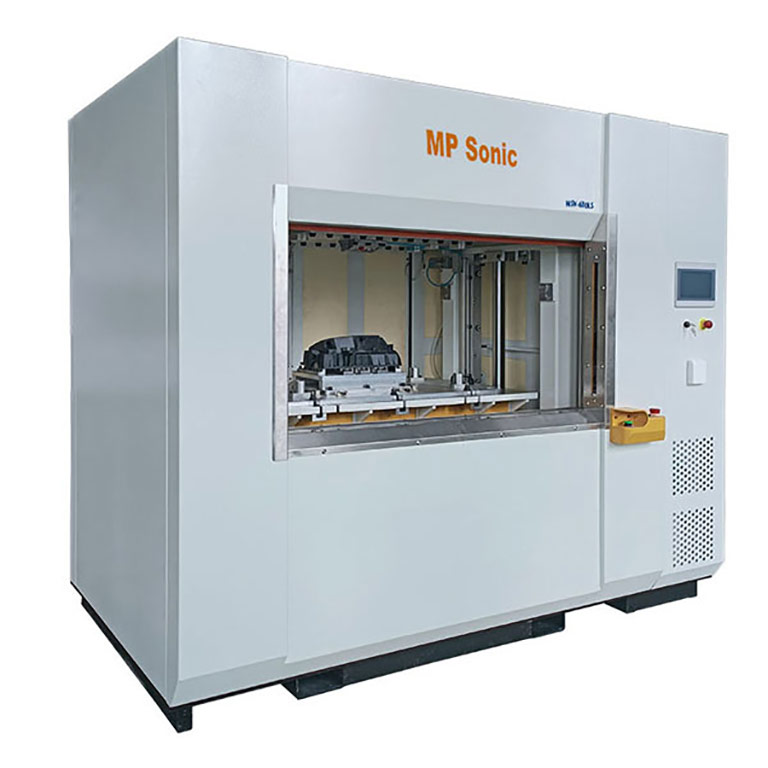

30KG Viberation Welder MSV-630LS
  • Vibration Welder MSV-630LS
  • 30KG Vibration Welding Machine

30KG Viberation Welder MSV-630LS

Description

MSV-630LS is a medium specification which can be applied or the most range of plastic welding which is over than ultrasonic plastic welding ability, and can be applied for the welding of such thermoplatic material which is out of hot palte welding ability. MVS-630LS linear vibration welder can be applied in house-held appliance industry such as welding for toilet lid, and automotive industry such weld tail lamp, instrument panel, air inlet manifold, etc.

MP-SONIC provide free plastic jointing design guide and analysis.

I. Main Features:
1. Auto frequency tuning after loading vibration welding tooling;
2. Welding process 8 steps control in precision for perfect plastic welding;
3. Welding control in time and depth mode;
4. 80 sets of welding parameter storage;
5. Welding result analysis help quality management;
6. Internet function is available for some model;

7. Printing function is designed;

8. I-cloud remote service system is equipped with machine for fast service in lost cost.


II. Optional Features:

1. Infrared Pre-melting system for clear vibration thermoplastic joining process.


III. Specification:

1. Model: MSV-630LS

Model

MSV-630LS/MSV-SF630

VibratIon Head

Weight upper tool

30 Kg

Welding area(approx. / for PP)

160

Amplitude(peak to peak)

0.81.8  mm/0.1~1.2mm

Frequency

210280 Hz/~365Hz

Spring Quantity

4

Magnetic Quantity

1

Machine

Machine Size : Width

2605 mm

             Depth

1286 mm

             Height

2290 mm

Front Door Opening : Width

1400 mm

                               Height

745 mm

Drive Platen/upper : Width

770 mm

                             Depth

440 mm

Lift Table Size : Width

1200 mm

                       Depth

520 mm

Table stroke/Max.

500 mm

Max. distance between lift table

735 mm

Vibration  head

Table speed

 250 mm/s

Clamp force

15.5 KN

Weight

 ≒3,800 kg

Sound pressure level



Electrical

Main voltage(3P)/In put

380V3P50/60Hz

Power consumption

23 KVA

Maximum Power/Out Put

15 Kw
