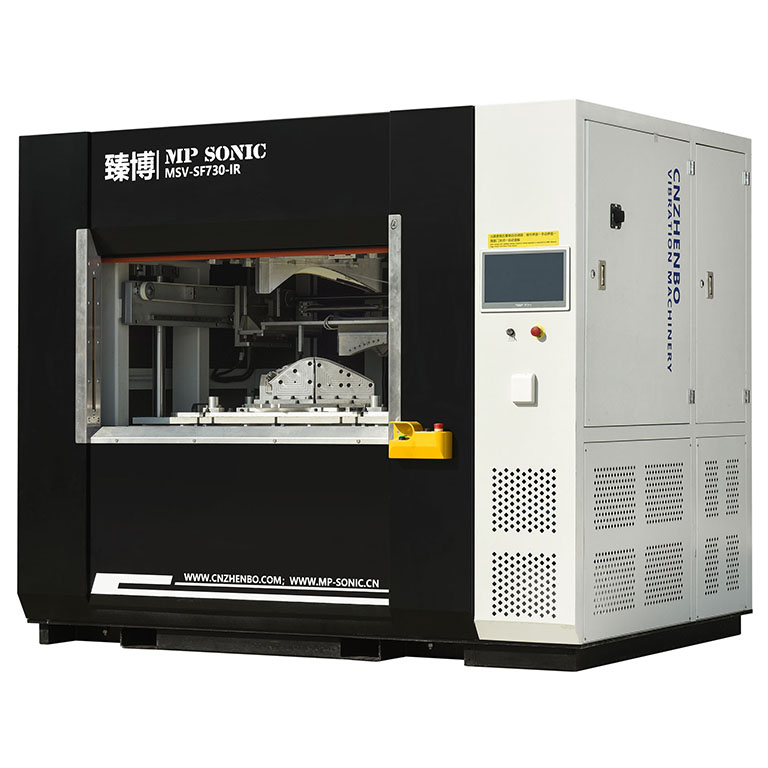

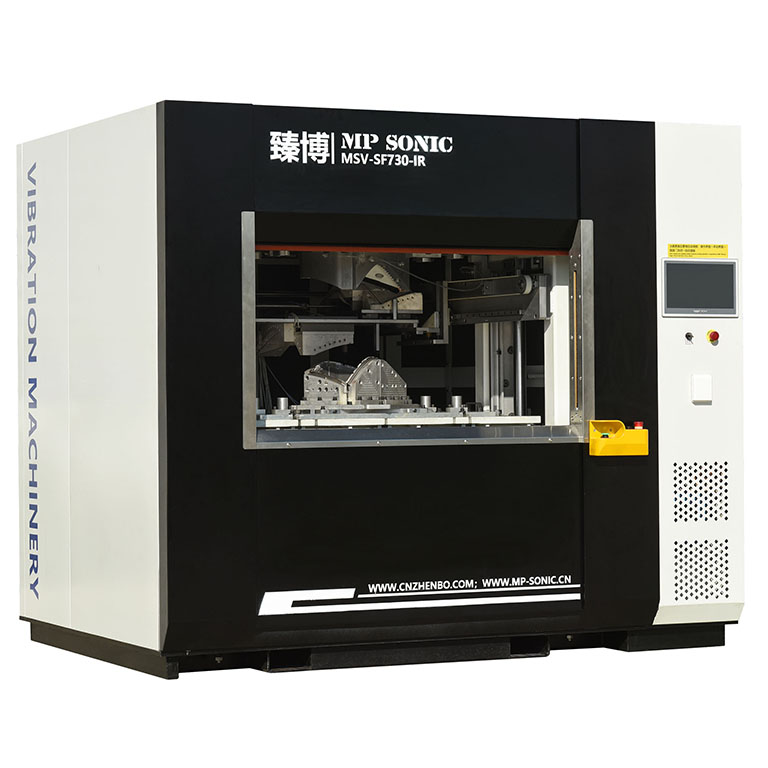

Vibration Welding Machine Hybrid (IR Type)

Description

MSV-IR series vibration welding machine can applied both MSV-LS series vibration system or MSV-SF series vibration system according to customer requirement. MSV-IR series machines most applied for tail lamp welding.

CNZHENBO | MP Sonic specifies MSV-650LS-IR 40KG and MSV-730LS-IR 70KG and standard specification, which can covers mostly of welding demand in the market. And if special requirement, we can develop IR system onto others vibration specification to meet actual demand.


I. Main Features:

 1. MSV-LS-IR series (IR equipped vibration welder with normal vibration system) is with all features of MSV-LS series vibration welders;

   MSV-SF-IR series (IR equipped vibration welder with super-high frequency vibration system) is with all features of MSV-SF series vibration welders;

 2. 8 sets of IR system applied. The power supply for IR preheating is specially designed by MP Sonic with the advantages of high-power output ability, stable and accurate temperature control.

3. Preheating is voltage controlled, system is with over-voltage and over-current protection.




II. Specification:

Model

MSV-730LS-IR / MSV-SF730-IR

MSV-650LS-IR / MSV-SF650-IR

Vibration Head

Weight upper tool

70 Kg

40 Kg

Welding area(approx. / for PP)

450

200

Amplitude(peak to peak)

0.8~1.8mm / 0.3~1.2mm

Frequency

210~280Hz / 210~365Hz

Spring Quantity

4 PCs

Magnetic Quantity

2 Pairs

1 Pairs

Machine

Machine Size : Width

2705 mm

2605 mm

                       Depth

1940mm

                      Height

2290 mm

2290 mm

Front Door Opening : Width

1500 mm

1400 mm

                                    Height

745 mm

745 mm

Drive Platen/upper : Width

1140 mm

870 mm

                                    Depth

520 mm

440 mm

Lift Table Size : Width

1500 mm

1300 mm

                           Depth

600 mm

600 mm

Table stroke/Max.

500 mm

500 mm

Max. distance between lift table & Vibration  head

735 mm

Table speed

 250 mm/s

Clamp force

25.5 KN

 15.5KN

Hydraulic System

Servo Pump (oil Pump is Sunny Brand)

Weight

 6,000 kg

 4,000 kg

Sound pressure level

<80db

Electrical

Main voltage(3P)/In put

380VAC3P50/60Hz

Power consumption

47 KVA

23 KVA

Maximum Power/Out Put

30 Kw

15 Kw

Control Voltage

DC 24V
