Description

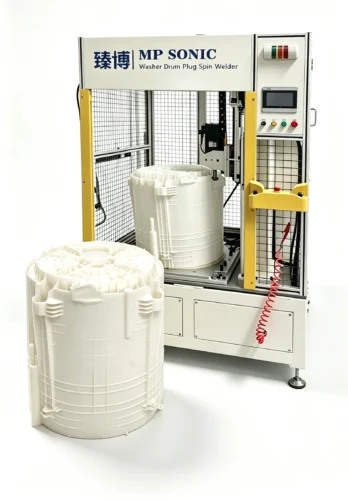

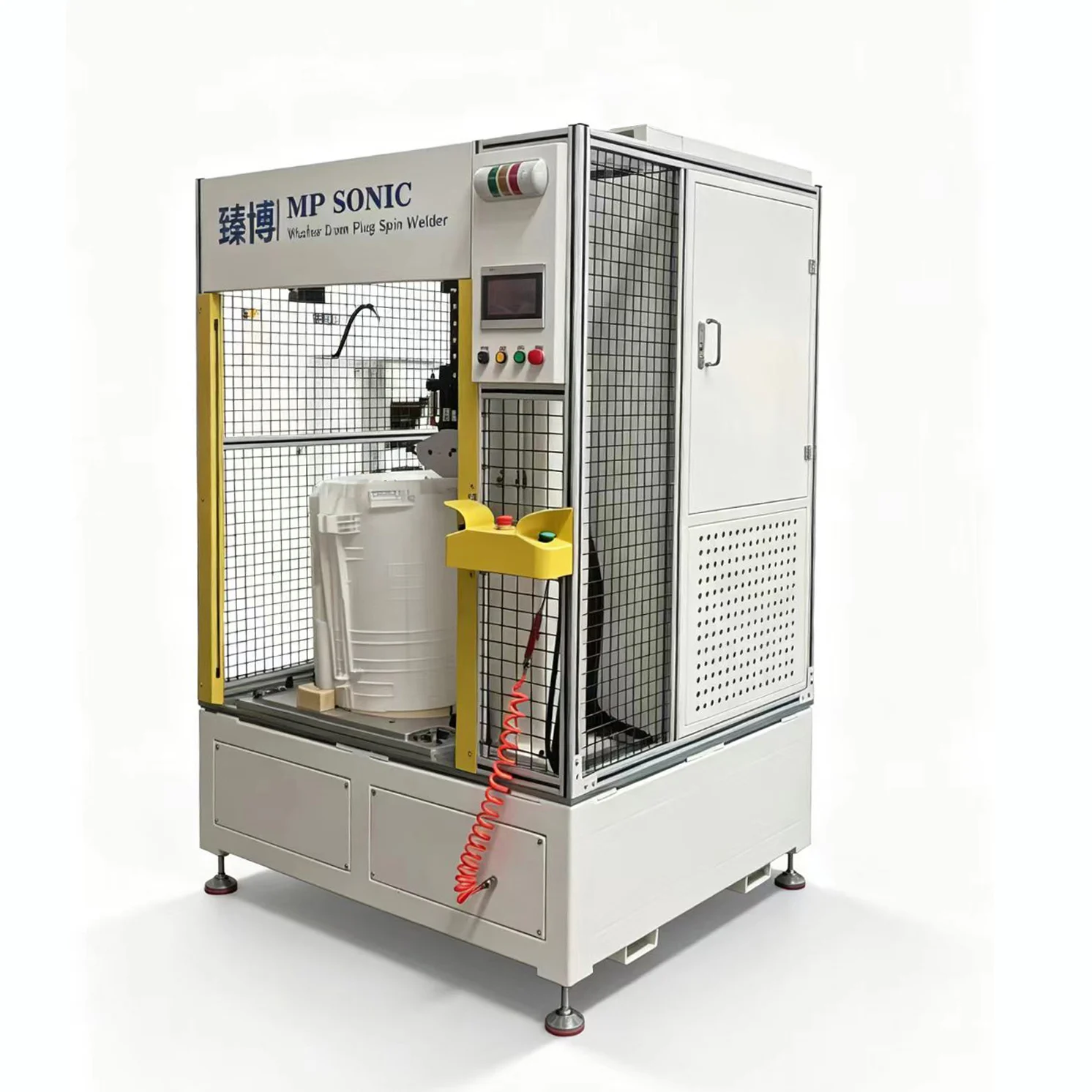

MPS-T02K series machine is designed to attach plug onto washer drum by spin welding method. Machine welding spindle is controlled by servo motor in reliability. Linear sensor is equipped to check welding depth.
Machine is designed in safety standard according to ISO 12100 & ISO 13849-1, CAT.3/4
Reliable welding result;
Trustable production qualification ration;
Short welding cycle time, high operation efficiency.
| Model Code | MPS-B02K |
| Dimension Layout | 1500*1289*2022 (mm) |
| Power Source | 220V, 1P, 50/60Hz, Can be specified. |
| Power Consumption | 1.5KW |
| Air Source Pressure | 0.6MPa |
| Welding Method | Spin Welding by servo system |
| Welding Power | Max.1000KW |
| Welding Setting | RPM, Pressure, Welding Torque & Depth |
| Communication | Option: Modbus RTU,RS485, PROFINET, EtherCAT, I/O |
| Safety Level | According to ISO 12100 and ISO 13849-1, CAT.3/4 |
| Model Change-over | Automatic |
| Detection Type | Optical Sensor |
| Welding Control | Time/Round/Depth |
