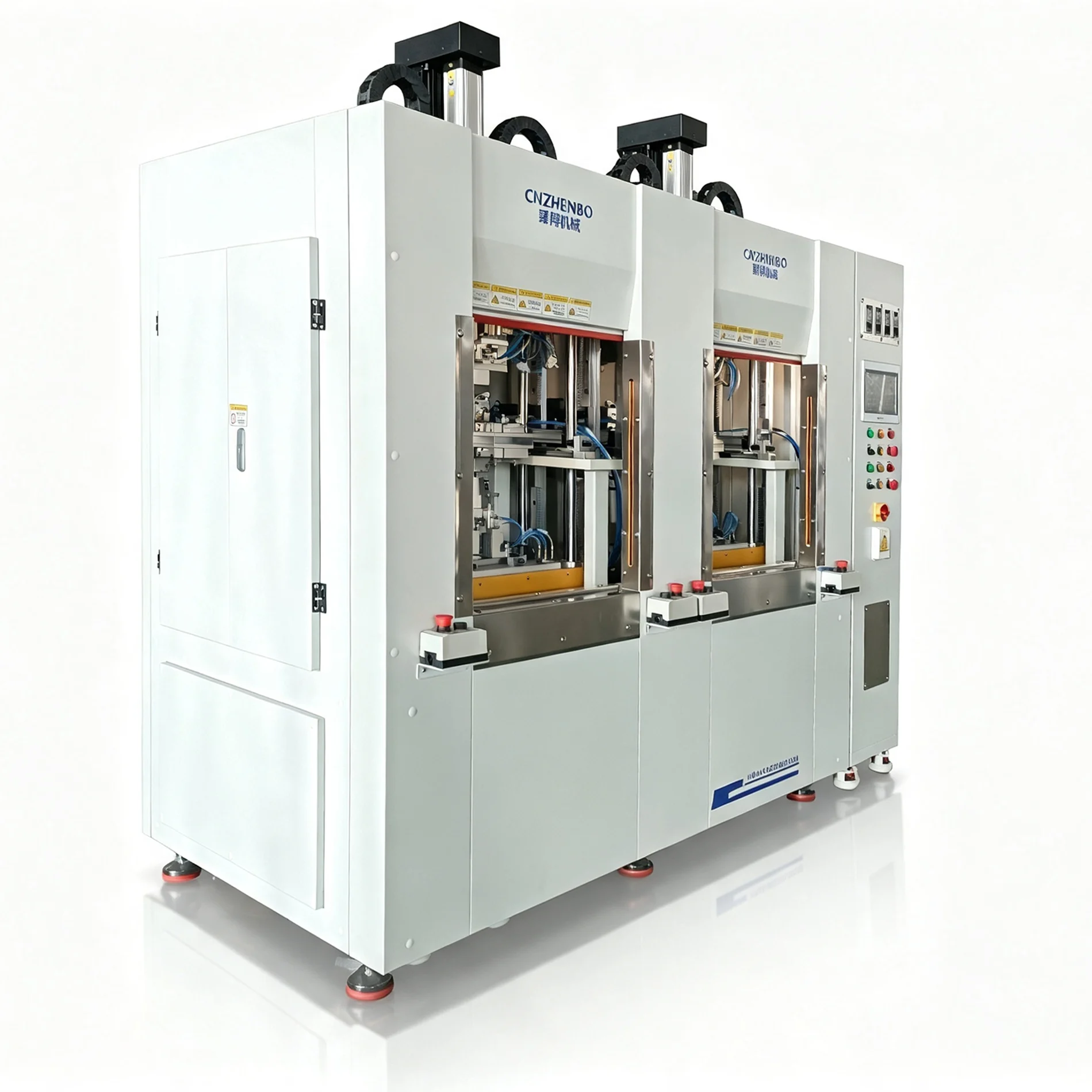

Machine is designed with two operation stations sharing one control cabinet. Operator operate two station in turn to enhance operation efficiency.

Machine control can be by pneumatic system or servo system.

I. Benefit: reducing operator waiting time, operation efficiency is high;

II. Main Feature:

1. All features of MP Sonic standard hot plate welder;

2. Teflon cloth covering system.

III.Specification:

1. Machine specification
   Weight：1.1T	Power Supply：380V 50HZ
   Dimension：2350*1100*2150mm	Machine Control：HMI
   Upper Jig Plate：450*300mm
   Hot Tooling Plate：340*260mm	Max Power：19KW
   Max Welding Area：300*260mm	Control Voltage：DC24V
   Optical Fence Protect High：440mm	Air Tank：10L
   Upper Jig Move Distance：250mm	Sensor Detection Distance：3–8mm
   Lower Jig Move Distance：250mm	Working Condition
   Hot Platen Move Distance：300mm	Air Supply：0.5–0.7Mpa
   Air Supply Pipe：Ф12	Max humidity：≤80%RH
   Optional: Temp Control Module Optical Fence        Air Gun	Room Temp：-10–60℃
   	Noise：≤85dB
