Ultrasonic Welder ZB-E1542

ZB-E1542 is an economical-series ultrasonic welder with high power output. It features an IGBT ultrasonic system operating at 15 kHz and 4200 W with a anti-resonance design. The machine uses a pneumatic cylinder to apply ultrasonic welding force. Welding control modes include time mode, energy mode, and external trigger mode. During welding, the process can be controlled in two steps with a set amplitude for each step.

A motor adjusts the machine head height. A strong square column and dovetail guideway ensure high precision and stability. The ZB-E1542 can be used to join parts with large geometric sizes and standard operational control requirements.

Alex Lee

+86-15918523336

[email protected]

I. Main Features

1. A high-power ultrasonic system is used, providing strong and stable output.
2. Welding control modes include time mode and energy mode to meet different welding requirements.
3. Two-step ultrasonic oscillation control meets welding requirements for special materials or product designs.
4. Ultrasonic output amplitude is adjustable from 10% to 100% with 1% accuracy.
5. Multiple safety protections ensure machine safety, including overvoltage protection, overload protection, and intelligent threshold protection.
6. The ultrasonic system features frequency search, horn impedance analysis, and sonic compensation to ensure stable operation over long periods.
7. The system includes memory for welding history.
8. A weld quality judgment function assists quality management (QM).
9. Machine head height is adjusted by a motor using two buttons for easy and smooth operation.

II. Main Benefits

1. Economical machine and maintenance costs.
2. Intelligent ultrasonic system design.
3. Stable performance and long service life.
4. Easy operation.

III. Main Parameters

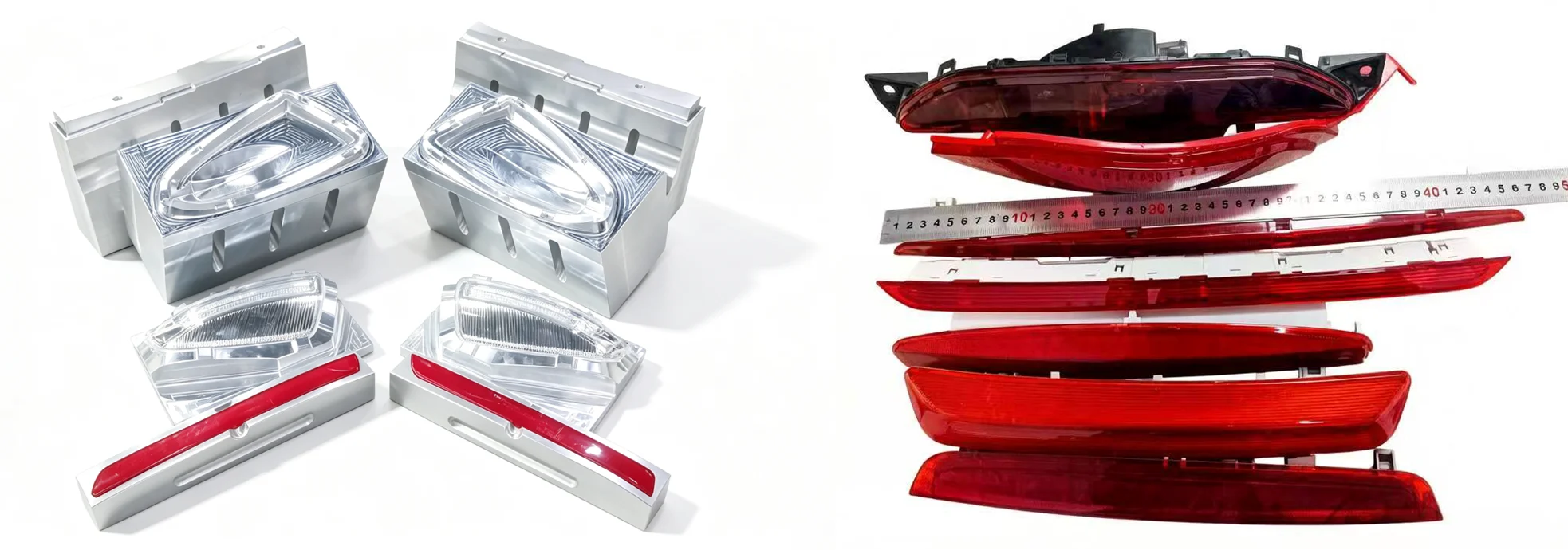

IV. Application Cases:

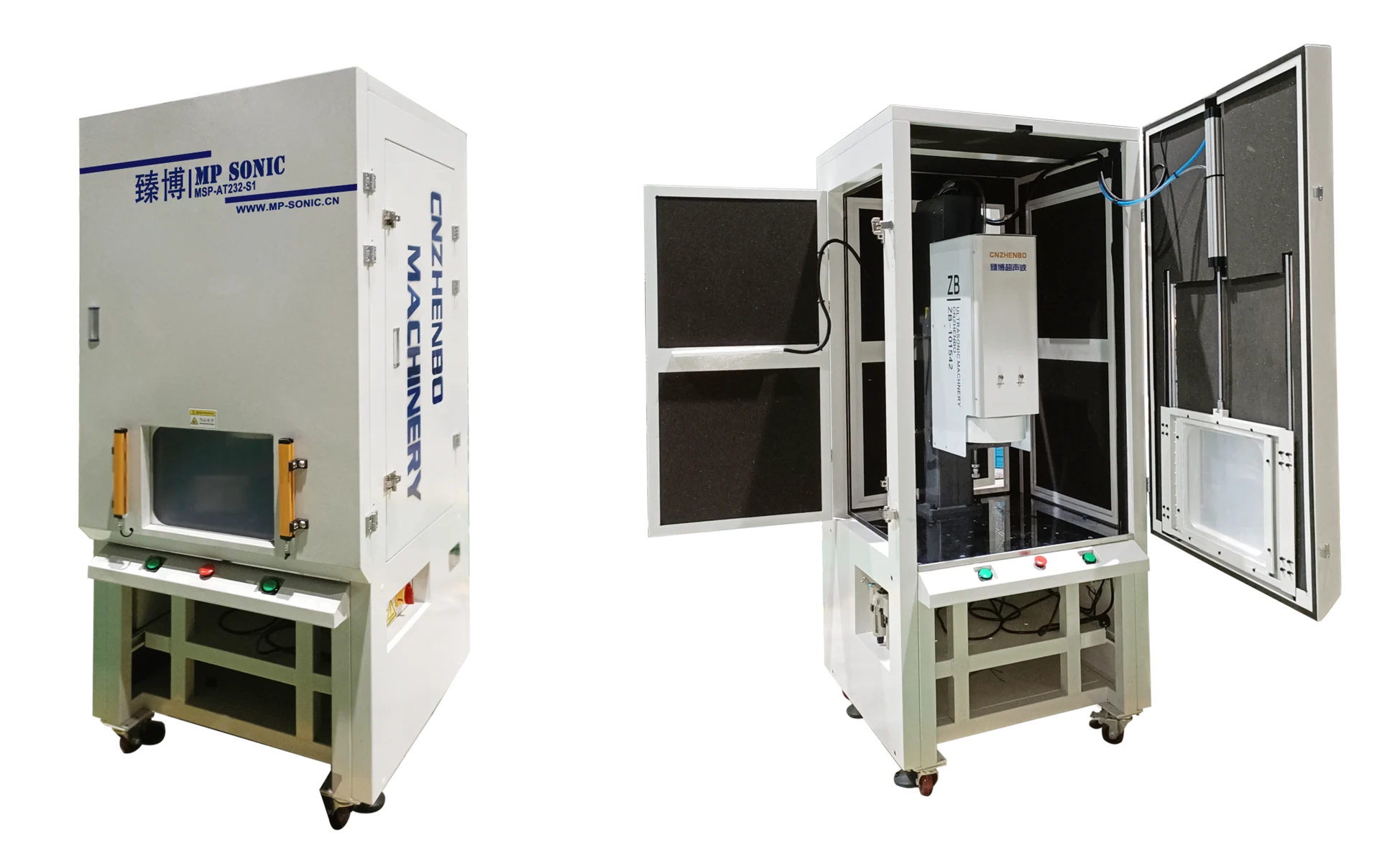

V. Optional Feature–Soundproof Shell

FAQ:

1. What kind of material can be welded by this machine?

MP Sonic: all thermoplastic material;

2. Is operation test available?

MP Sonic: Yes, customer provide workpieces or material for test, and welding tooling need to be designed and made accordingly;

3. What is the max amplitude of machine?

MP Sonic: max.70μm

4. How to control the noise of machine?

MP Sonic: 15KHz ultrasonic system sound is high, it can be equipped with sound-proof shell to reduce sound.

5. How is the packing of machine?

MP Sonic: Waterproof film for inner packing + plywood case for outer packing.

Download Machine Specification Z-E1542
