Description

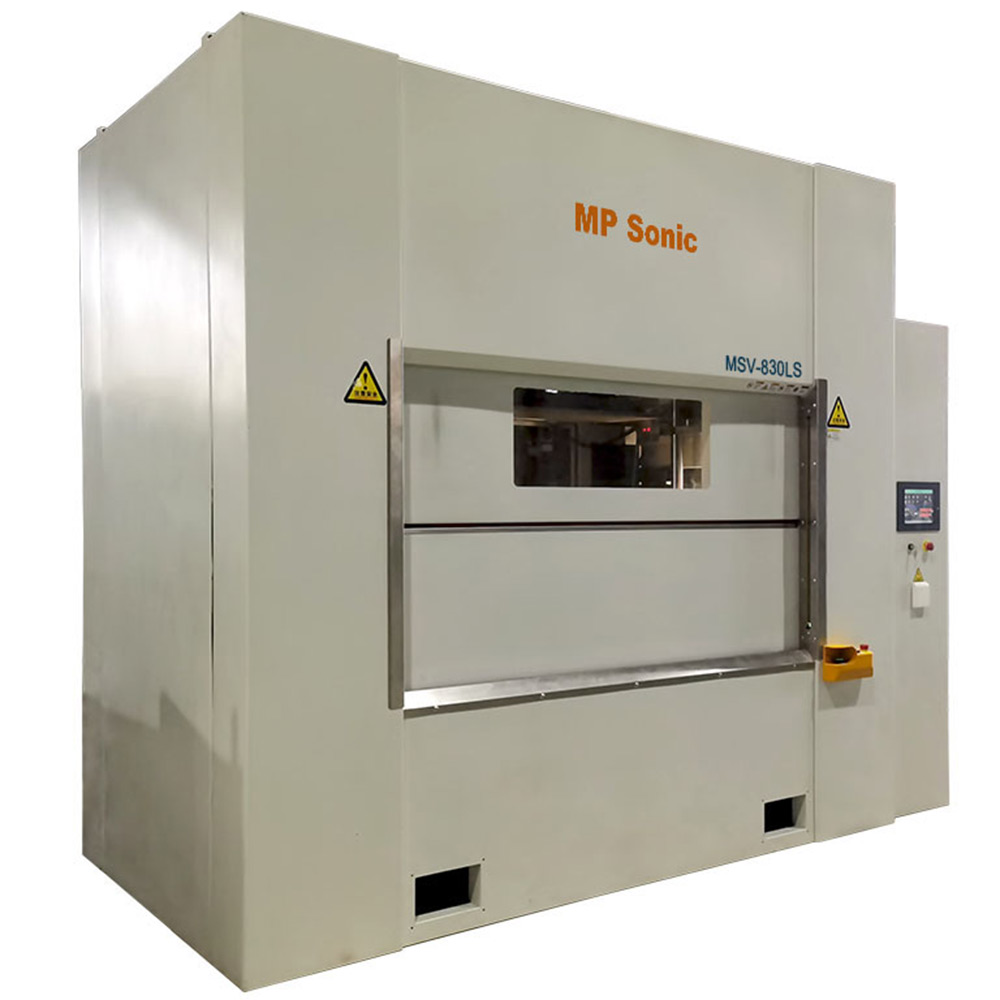

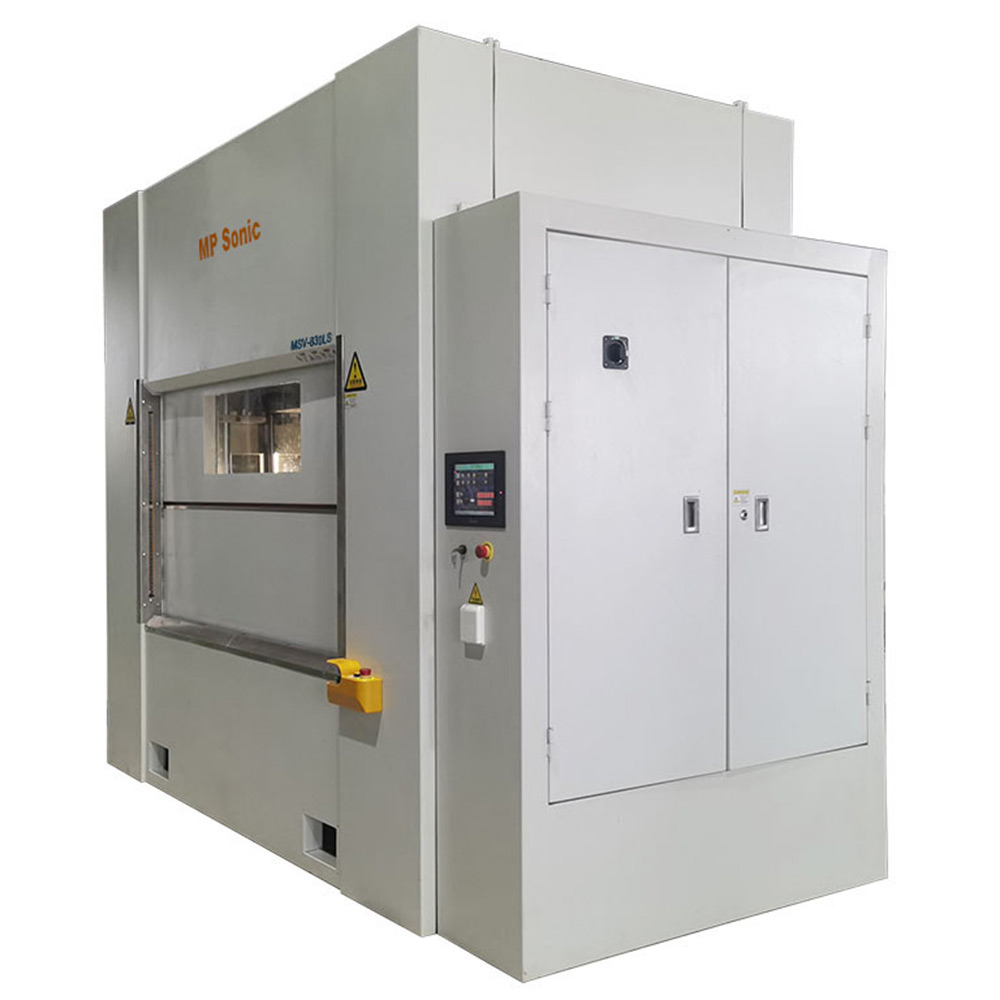

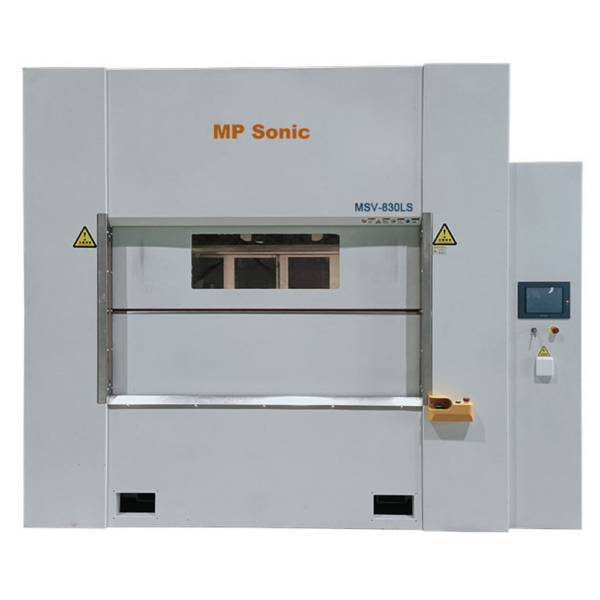

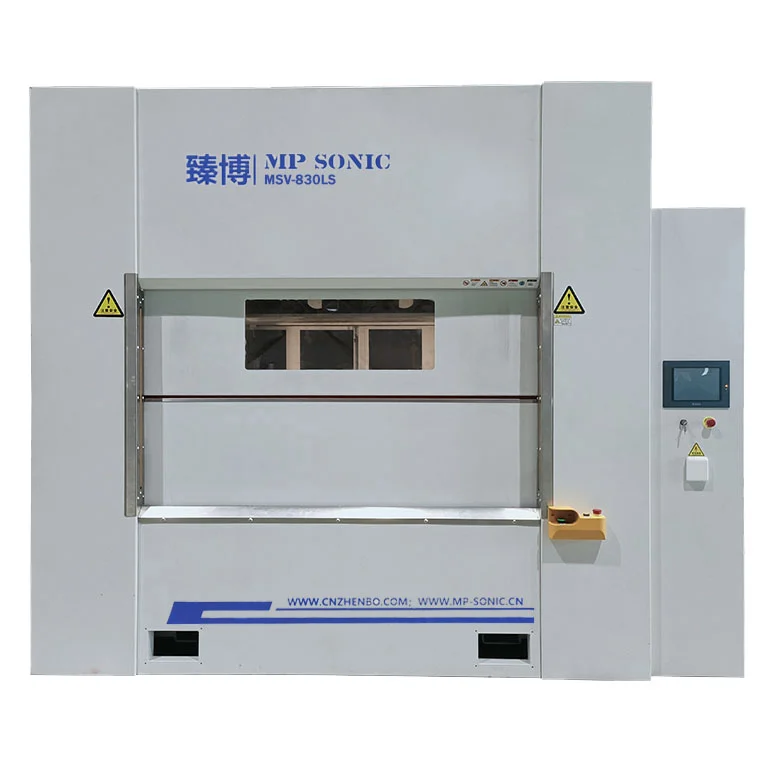

MSV-830LS is a vibration plastic welder in a super big specification which is designed to weld plastic parts in challenging measurement and material. MSV-830LS linear vibration welder is mostly applied for the assembling of automotive dashboard, such as welding air-duct, conditioner air channel, airbag, screen demist duct, , etc. Machine is designed with orbital construction to meet complex dashboard geometric design. Machine applies servo hydraulic to control forcing pressure during vibration welding, linear sensor is applied to inspect and control vibration welding depth. Welding process steps control is available for perfect welding result.

MP-SONIC vibration plastic welding machine applies critical parts and material from Europe, USA, Japan or Korea basing on condition, to ensure its perfect vibration plastic welding performance and stability in running, while MP-SONIC manufactures & assembles the complete machine in China to reduce machine cost which is under strict control to ensure machine quality.
MP-SONIC provide free plastic jointing design guide and analysis.

MSV-830LS & MSV-950LS is the specification mostly applied for the welding to automotive dashboard assembly such as dashboard, dashboard carries, instrument panel, defroster, PAB (passenger air bag) chute, or door trim welding, etc, which is in big size and complex designs.


I. Features:
1. Auto-tuning the frequency after jig loading;
2. Welding process steps control to meeting different high thermoplastic vibration joining requirement;
3. Operation mode can be time mode or depth mode;
4. 80 sets of welding parameter storage;
5. Welding quality judgment help quality management;

6. Orbital system is designed with machine for complex geometric design of parts to be welded.
7. Internet connection function is available;

8.Printing function is designed;

9. I-cloud remote service system for fast service action in low cost.


II. Optional Features:

1. Infrared pre-heating system;

2. Welding force by pure electrical servo system;

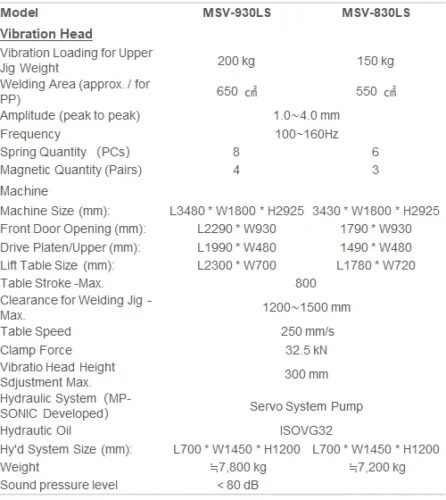

III. Specification:

Dashboard Welder Specification

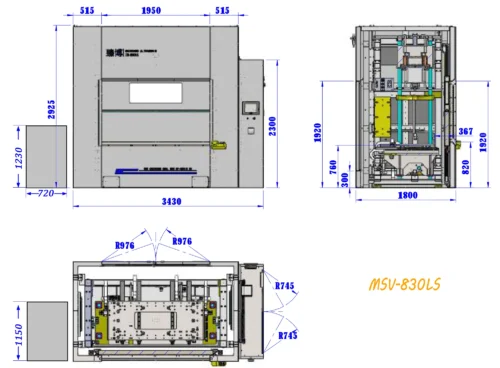

IV. Machine Measurement Layout:

MSV-830LS

MSV-830LS 150KG

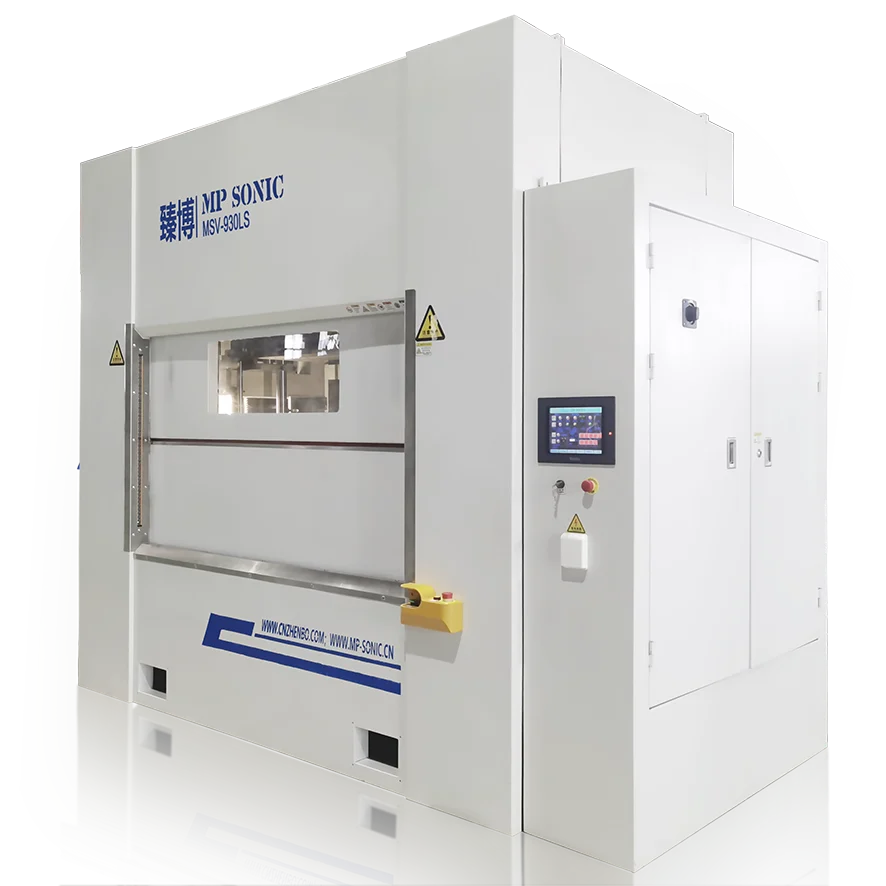

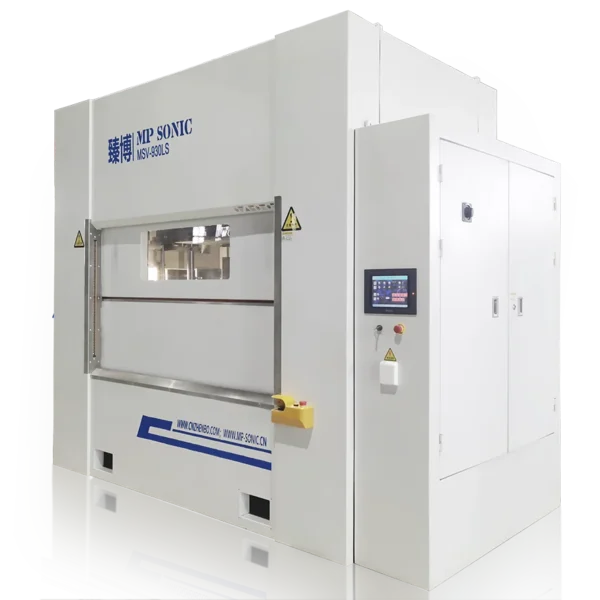

MSV-930LS



MSV-830LS 150KG
