Automatic Ultrasonic Welding Machine for ePTFE

This ultrasonic welding machine is designed for attaching ePTFE film onto controller of battery packing of electrical motor automotive in automatic operation.

Complete machine is designed and manufactured to combining with customer’s automatic line. The design and manufacturing meet the standard of cleanroom. EPTFE welder applies high frequency ultrasonic welding system to weld PETFE film onto plastic parts.

Alex Lee

+86-15918523336

[email protected]

I.Main Benefit:

1. Automation, high production efficiency, saving labor cost.
2. Precision ultrasonic welding control, welding is stable in quality.
3. Quality inspection features equipped, fit for quality control;

II. Main Features:

1. Welding servo control for high welding precision control: welding can be depth control, force control, energy control or time control;
2. Auto feeder system for ePTFEE;
3. CCD system for FETFEE feeding supervision, avoiding lack of ePTFE film or error positioning;
4. Product performance test system;
5. Assembly CCD inspection system;
6. Autom shifting system applied to transfer between different process station from material loading-in to material outputting.
7. Remote Operation System Synchronously operation by touch panel. IOS developed by MP Sonic realize multiple function for machine operation and production management, realize equipment control, production management, QC control, data record, state supervision, etc.
8. Machine shell for cleanroom production.

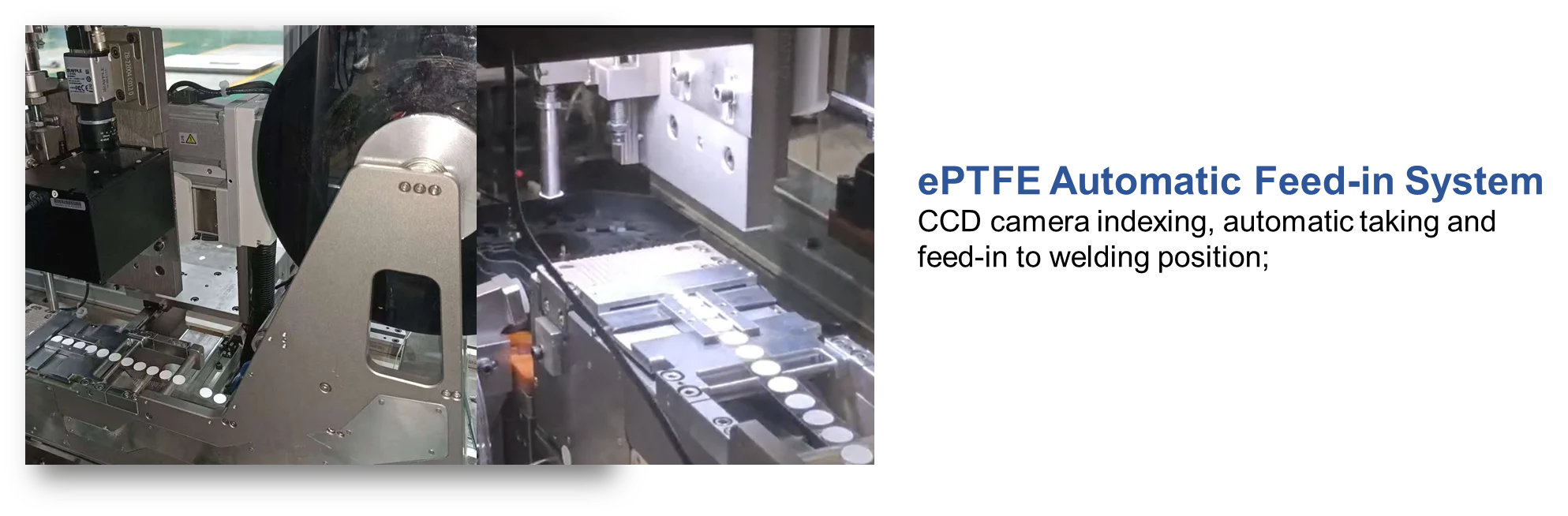

ePTFE Automatic Feed-in

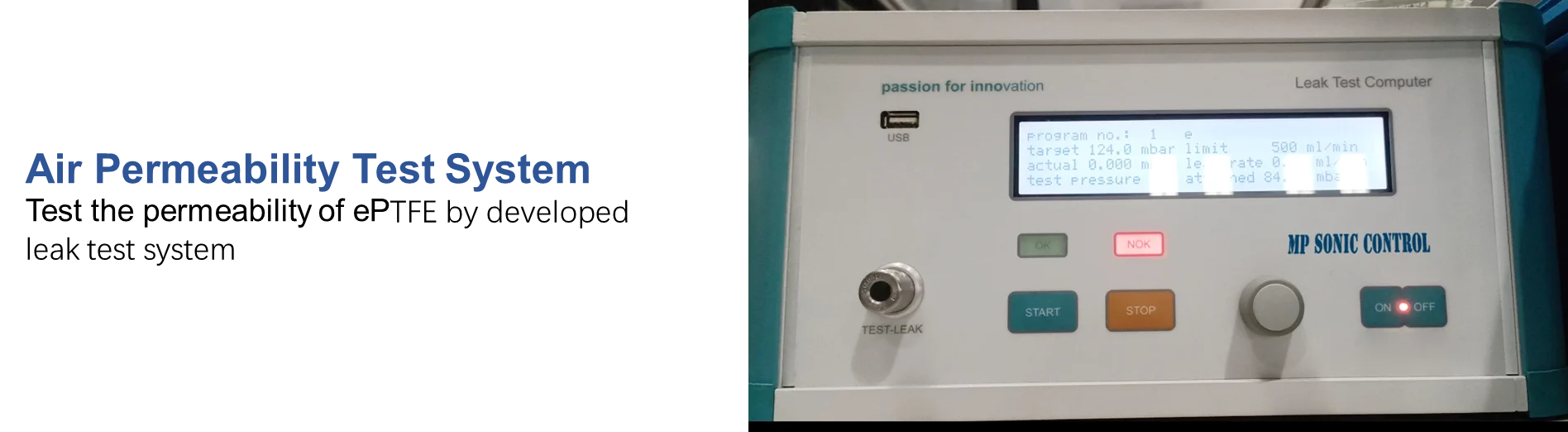

Air Permeability Test System

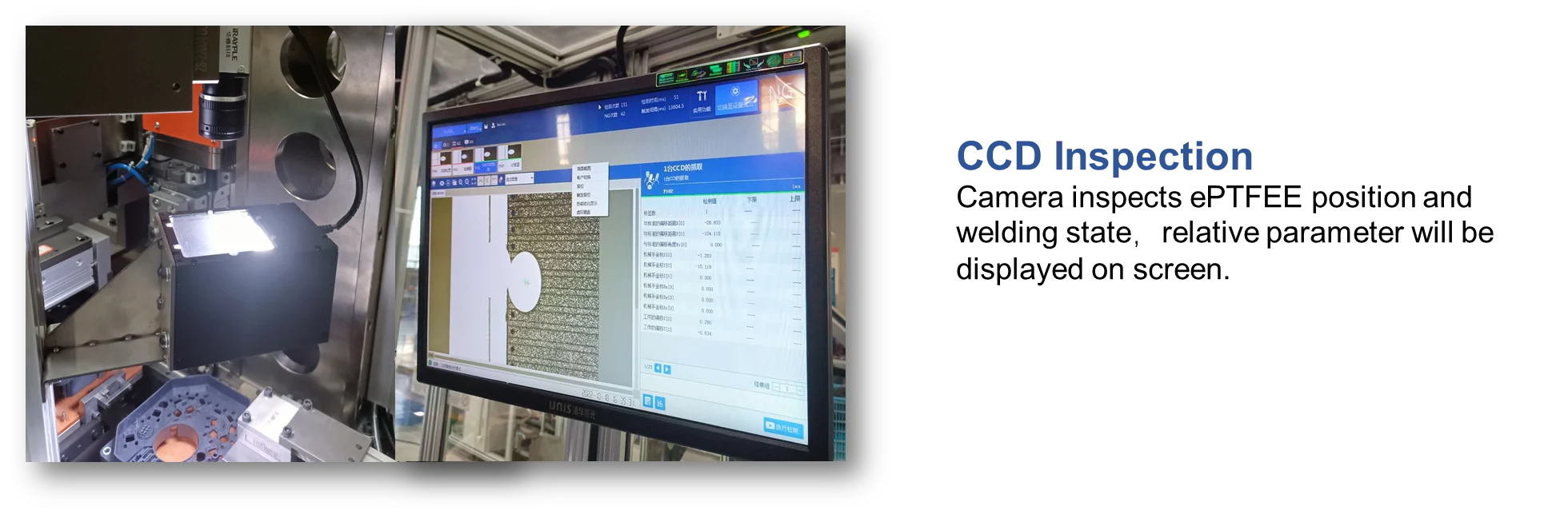

CCD Inspection

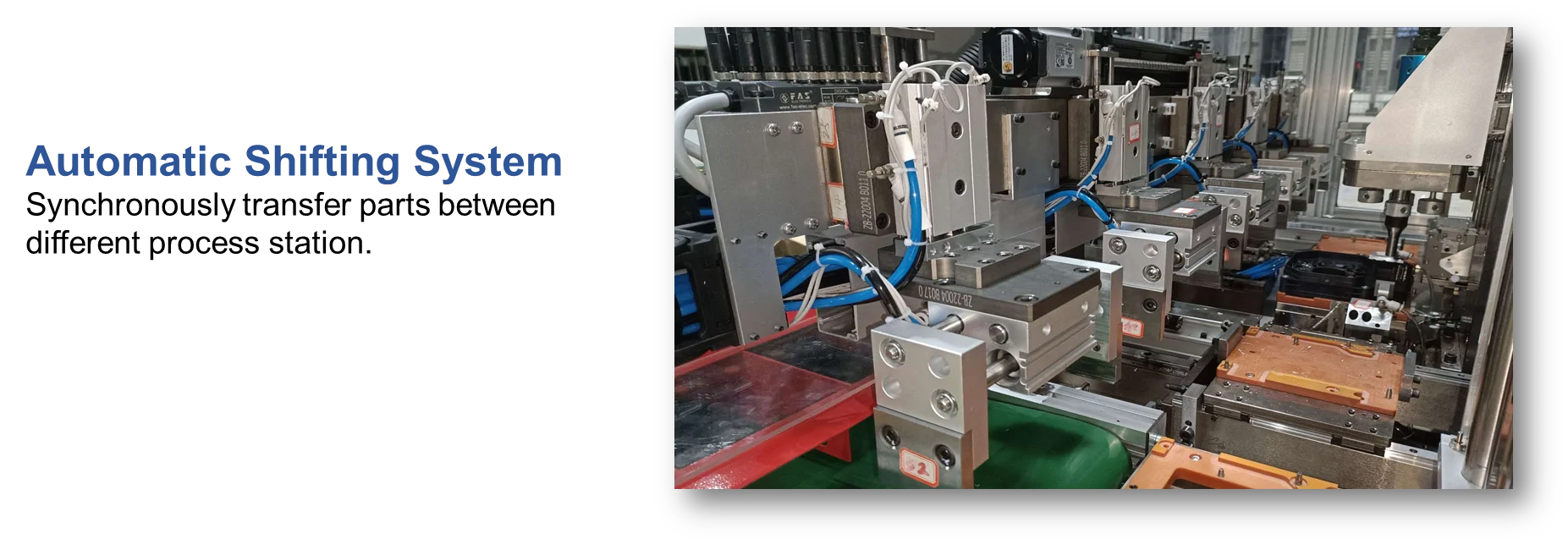

Automatic Shifting System

Automatic Shifting System-Synchronously transfer parts between different process station.

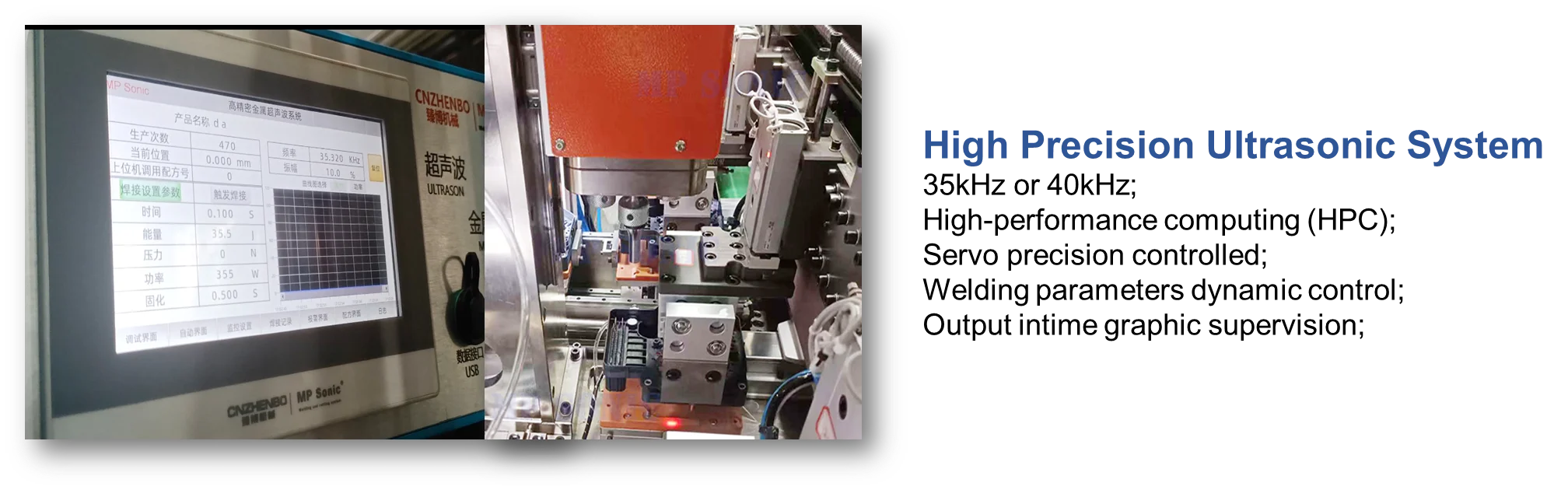

III. Critical Technology-MP Sonic Precision Ultrasonic Welding Control

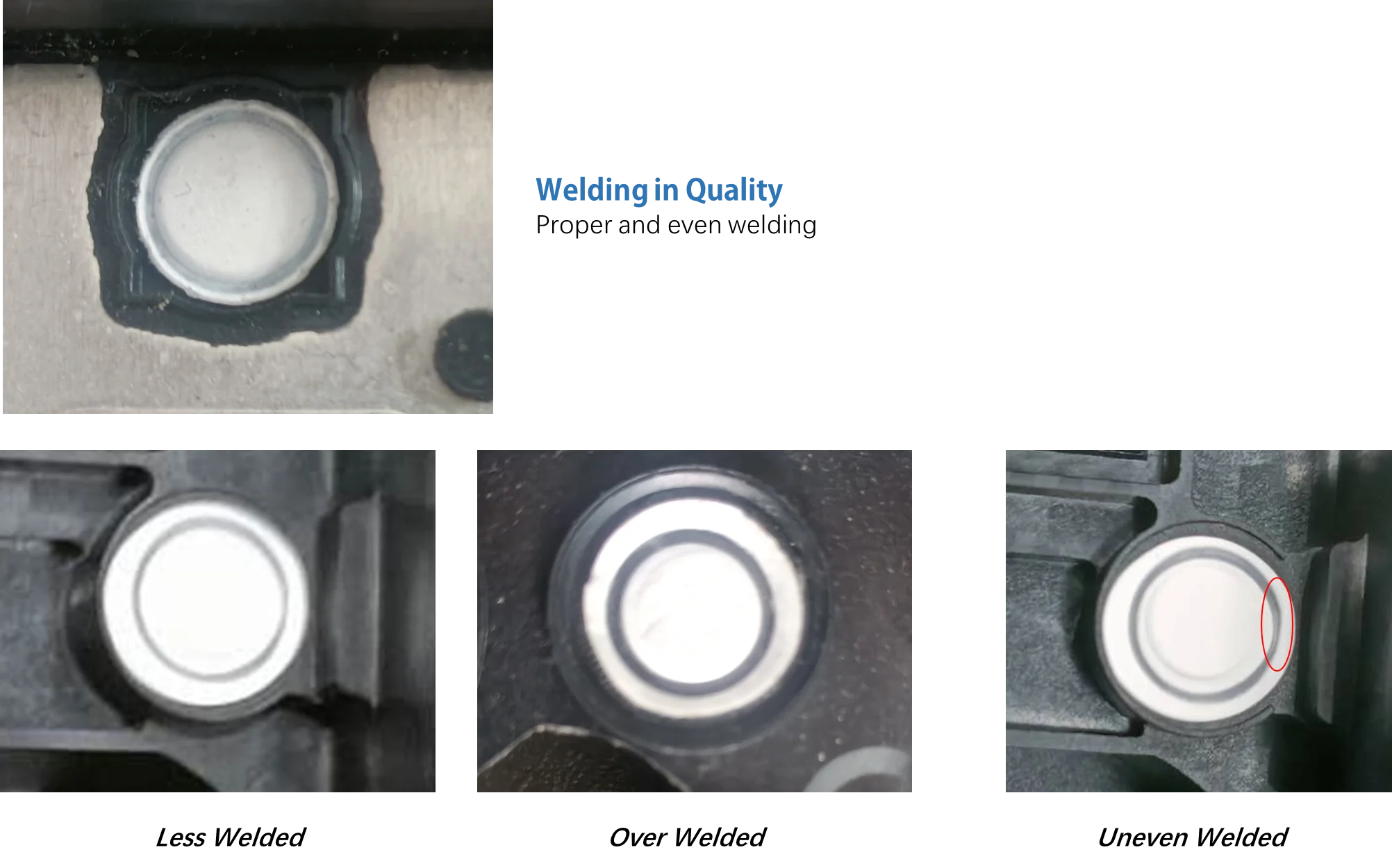

The welding of ePTFE is in big challenge, less welding, over weld or uneven welding are common issues, that because ePTFE is in little thickness (the mostly is 10 – 50 μm), thus the welding of it requests strictly in precision control and stability. It requests accurate control to the ultrasonic amplitude control, ultrasonic energy control working on ePTFE film as well as the motion & force.

MP Sonic developed high-precision ultrasonic control system performs optimized welding to ePTFE. It applies high speed industrial CPU with great calculation ability to process huge data in complex condition with MP Sonic developed program, by which ultrasonic system supervises welding state and make intime adjustment accordingly to welding parameter including amplitude, energy, welding depth and motion speed, welding force, to ensure proper welding to ePTFE material.

See Video

FAQ:

1. What does it apply 35kHz or 40kHz ultrasonic system to weld ePTFE?

Because PETFE is in very little thickness, 35~40Khz can ensure efficiency melting to machine on the other hand protect material from damage by big amplitude of ultrasonic.

2. What kind of ultrasonic horn is used for ePTFE welding, titanium, aluminum or steel?

Titanium or steel.

3. What is the welding cycle?

Normally 0.1~0.2S.

4. What is the machine lead time?

6~8 weeks.

5. Can you test welding to our material?

Yes, we provide material test service.
