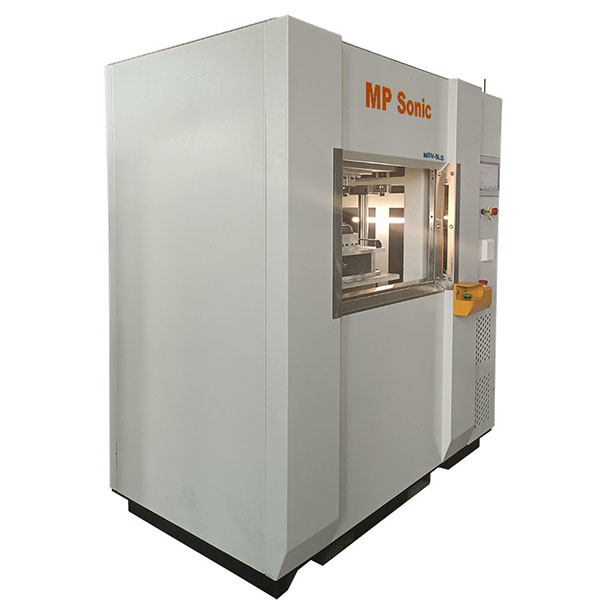

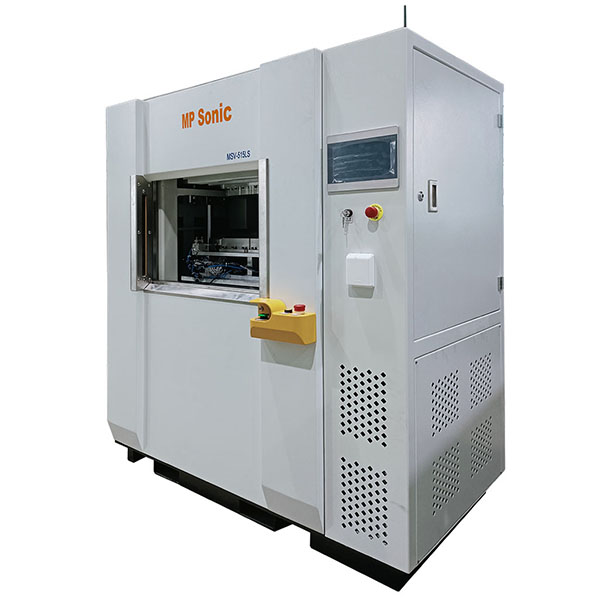

15KG Vibration welder MSV-515lS

15KG Vibration welder MSV-515lS

Description

MSV-515LS is a linear vibration fricion plastic welding machine in small specification which is mostly applied to welding plastic welding  out of ultrasonic  welding ability, or for the welding of such thermoplatic material which is out of hot palte welding ability. MVS-515LS linear vibration welder can be applied to weld signal light of car, nylon connector, pipe nozzle, etc.

MP-SONIC provide free plastic jointing design guide and analysis.


I. Main Features:

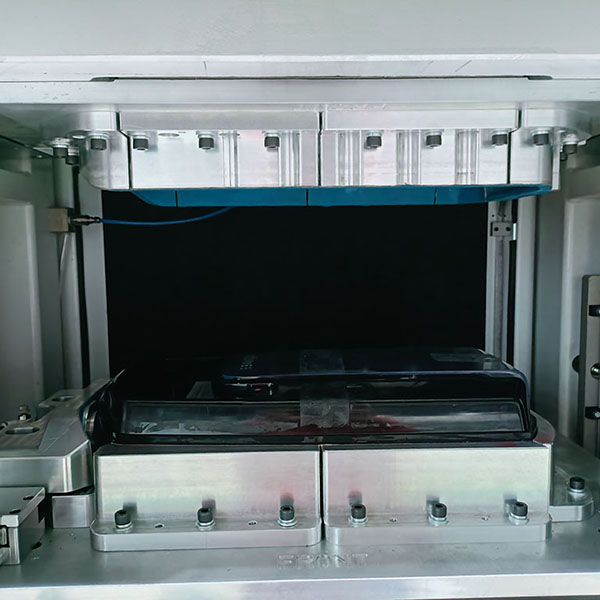

1. Auto frequency tuning after loading vibration welding tooling;

2. Welding process 8 steps control in precision for perfect plastic welding;

3. Welding control in time and depth mode;
4. 80 sets of welding parameter storage;
5. Welding result analysis help quality management.

II. Optional Features:

1. Infrared Pre-melting system for clear vibration thermoplastic joining process;

2. Internet(ETOS-50);

3. Printing.
III. Specification:

Model

MSV-515LS

Vibration Head

Weight upper tool

15 Kg

Welding area(approx. / for PP)

50

Amplitude(peak to peak)

0.51.8  mm

Frequency

220280 Hz

Spring Quantity

2

Magnetic Quantity

1

Machine

Machine Size : Width

1650 mm

               Depth

960 mm

               Height

1990 mm

Front Door Opening : Width

800 mm

                     Height

540 mm

Drive Platen/upper : Width

360 mm

                     Depth

310mm

Lift Table Size : Width

1200 mm

                  Depth

500 mm

Table stroke/Max.

300 mm

Max. distance between lift table

500 mm

VibratIon  head

Table speed

 250 mm/s

Clamp force压力

8 KN

Weight重量

 ≒1500 kg

Sound pressure level

<=80db

Electrical电器

Power consumption

13 KVA

Maximum Power/Out Put

5.5 Kw
