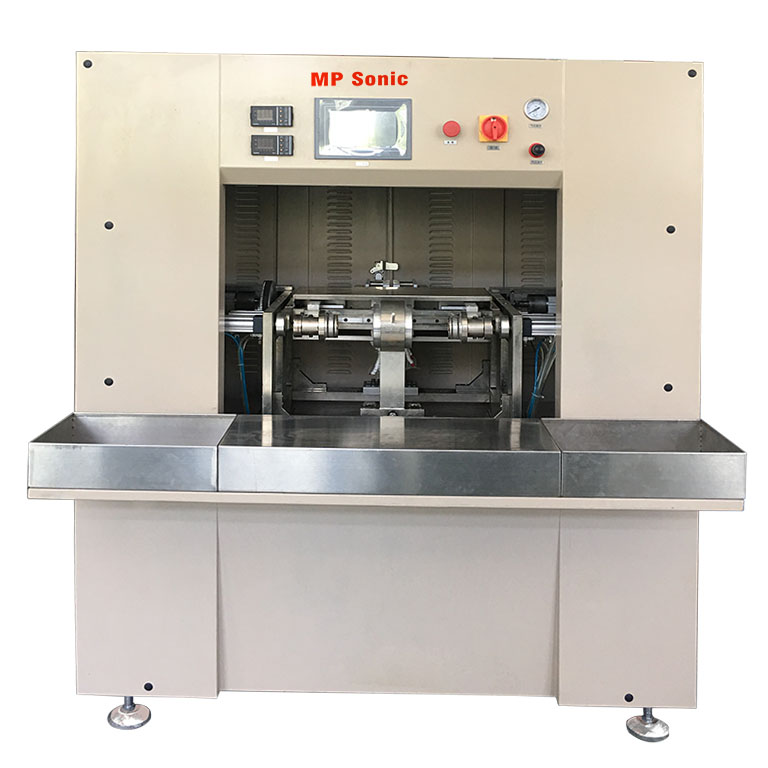

Infrared Welder

I.Basic Features:

1. Infrared welding, by which there is no sticking by molten material to heating tooling;

2. PLC & HMI machine control and parameter set;

3. MP-SONIC special designed PID IR system ensures stable & accurate temperature, as well as achieves max infrared life period;

4. Safety protection system including an alarm system, optical fence, etc;

5. Double-work-station machine designed, thermoplastic melting and fusing is doing synchronously;

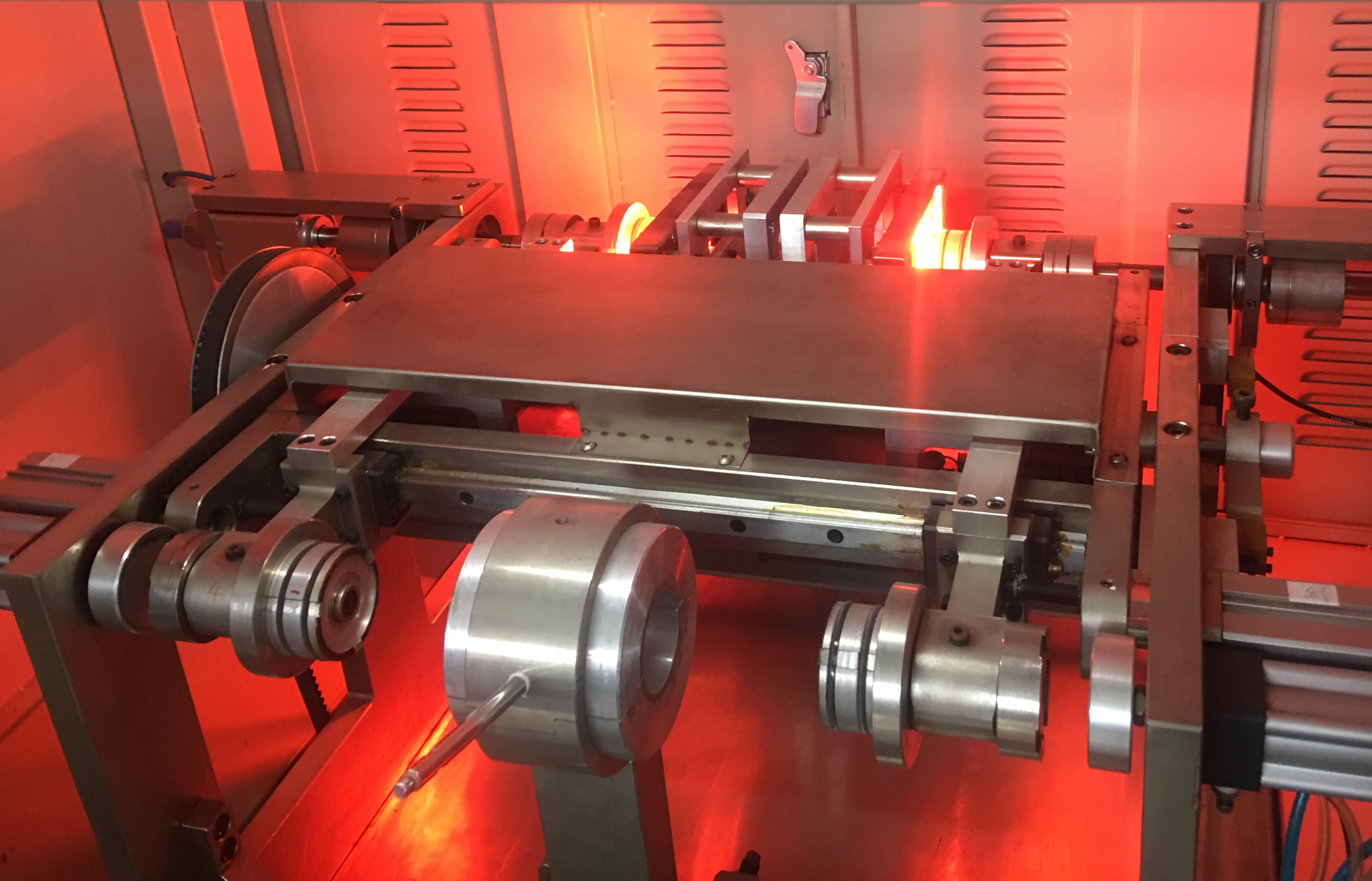

6. End cap fixture is turning designed, ensuring even heating & melting;

7. Top elements applied for stability, duration and precision.

II.Specification:

1. Dimension: 1450*1180*1732mm;

2. Weight: 0.8T

3. Power Supply: 380V 50HZ;

4. Max Power Consumption: 6KW

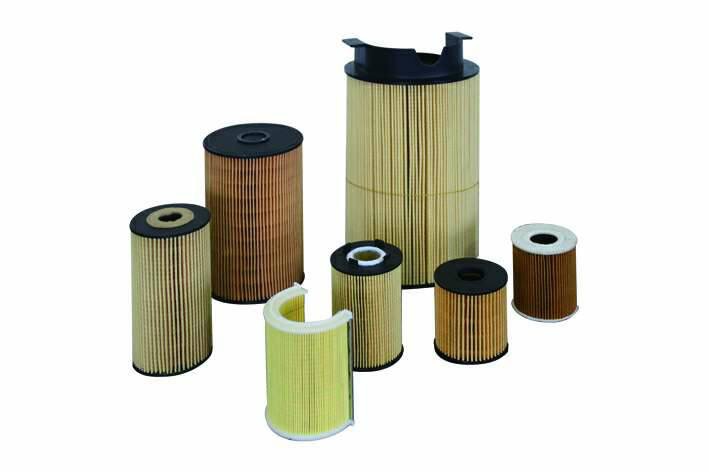

5. Paper Filter Core Diameter:40~100mm;

6. Filter Length: 50~200mm;

7. Max Welding Area: Dia100mm;

8. Control Voltage: DC24V;

9. Sensor Detect Distance: 3--8mm;

10. Air Supply: 0.5--0.7Mpa

11. Air Supply Pipe: Dia10mm;

12. Work Condition:  Max humidity: 80%RH;

Room Temp:-10--600^oC;

Noise: <85dB
