Hot Plate Welder MSV-6550
- Category:Hot Plate Welding Machine
- Phone:+86-15918523336
- Fax:+86-577-61517750
- Skype:
- E-mail:info@mp-sonic.com

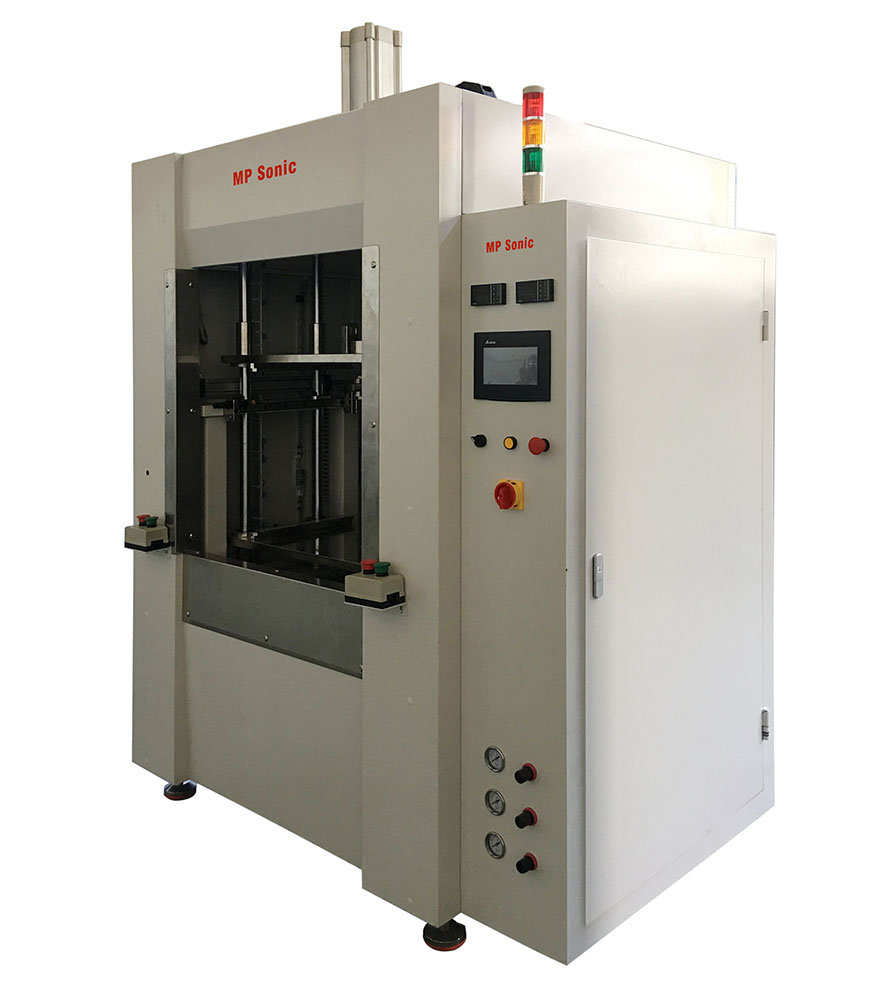

MSH-6550 is a hot plate welding machine applying pneumatic cylinder systems to control action in precision, which can weld plastic in square max to 652*400 (mm). With pneumatic cylinder, machine is with advantages of fast action and economical cost of machine and maintenance.
MSH-6550S is mostly applied to weld thermoplastic parts in large size, eg in automotive industry: tail lamp, washer tanks, glove box lid, etc.
I. Main Features：
1. Hot plate melting temperature is PID controlled in accuracy and stability;
2. Welding parameters storage for different plastic parts' hot plate welding production;
3. Hot plate welding history memory;
4. HMI set machine;
5. Optical fence safety protection;
6. Vacuum, clip and ejectors function is equipped with the machine to meet different requirement;
7. Part loading detection to avoid operation without plastic parts loading;
8. Alarm system safety.
II. Specification:
|
Weight：1.5T |
Power Supply：380V 50HZ |
|
Dimension：1880*1620*3000mm |
Machine Control：HMI |
|
Upper Jig Plate：660*420mm |
|
|
Hot Mould Plate：660*400mm |
Max Power：20KW |
|
Max Welding Area：652*400mm |
Control Voltage：DC24V |
|
Optical Fence Protect Hight：440mm |
Temp Zone: 4+4 |
|
Upper Jig Move Distance：350mm |
Sensor Detection Distance：38mm |
|
Lower Jig Move Distance：300mm |
Working Condition |
|
Hot Platen Move Distance：450mm |
Air Supply：0.5--0.7Mpa |
|
Air Supply Pipe：Ф12 |
Max humidity：≤80%RH |
|
Optional：Auto Jig Loading System SPC UPS Vacuum Pump |
Room Temp：-10--60℃ |
|
Noise：≤85dB
|
