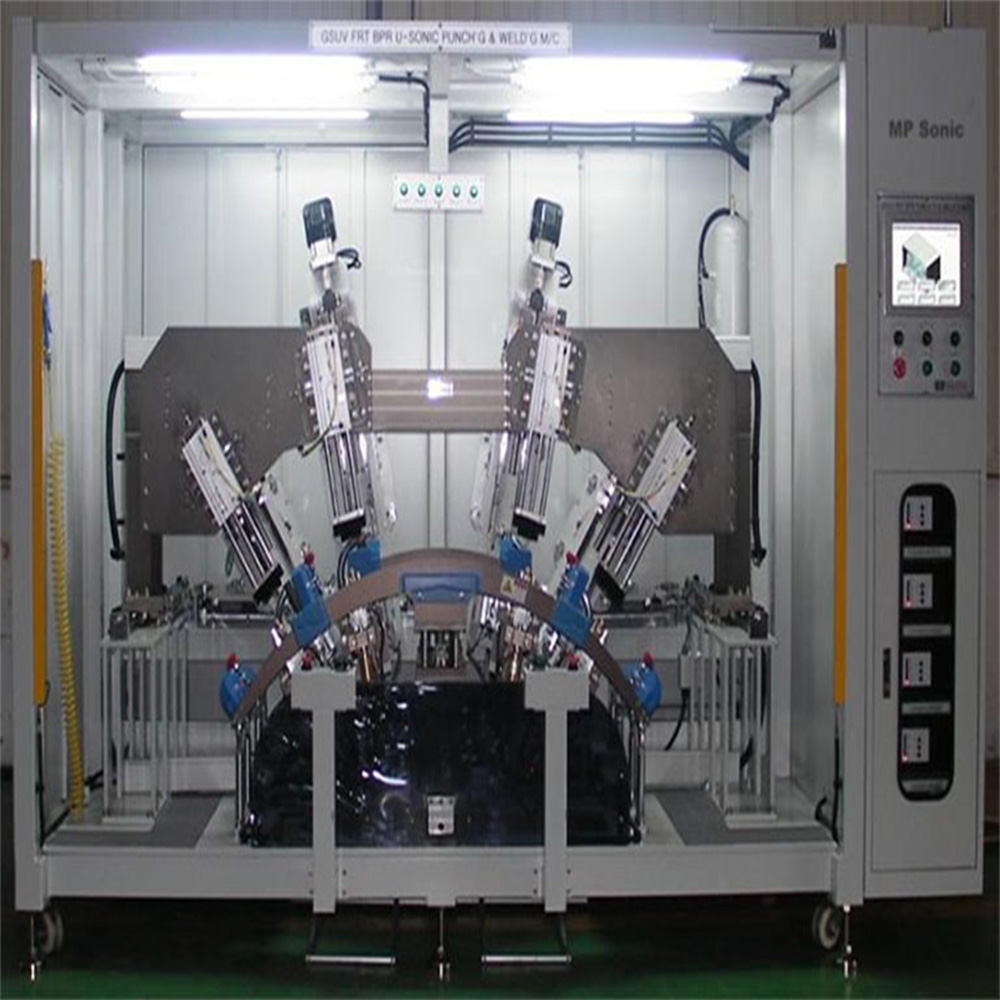

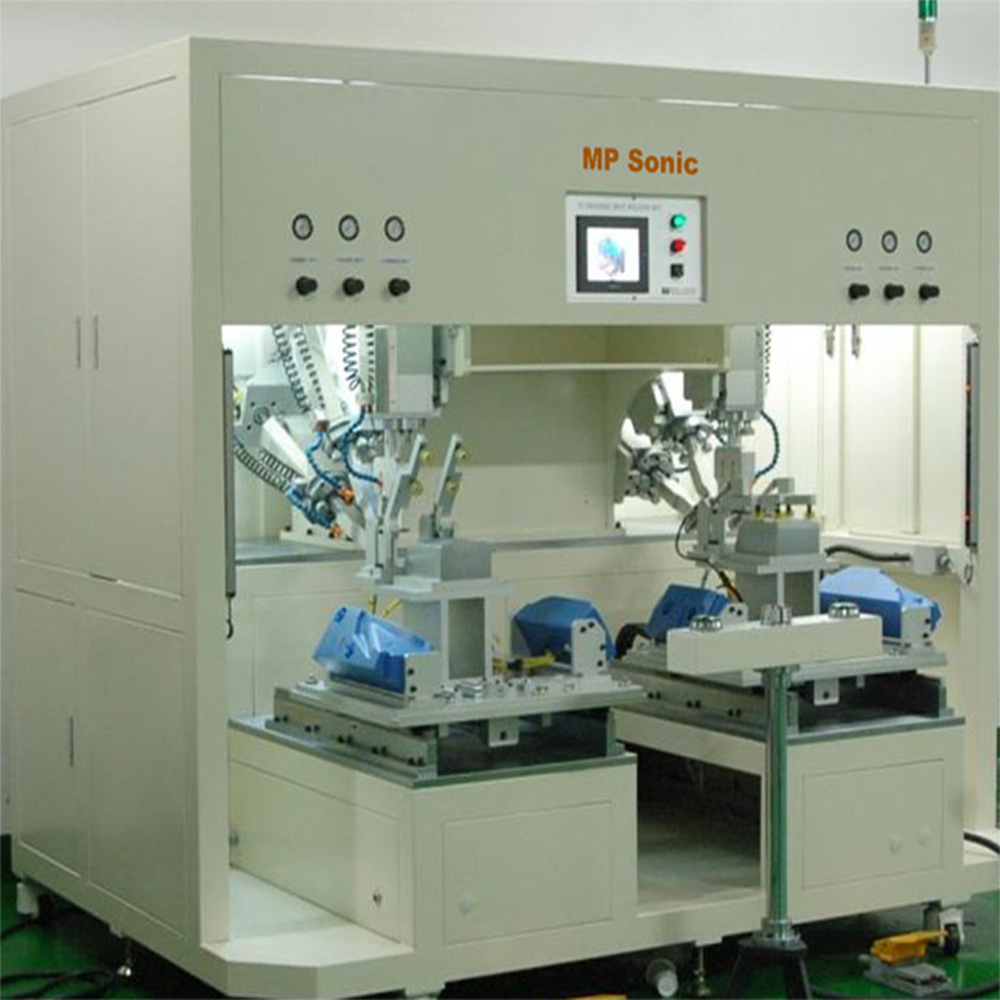

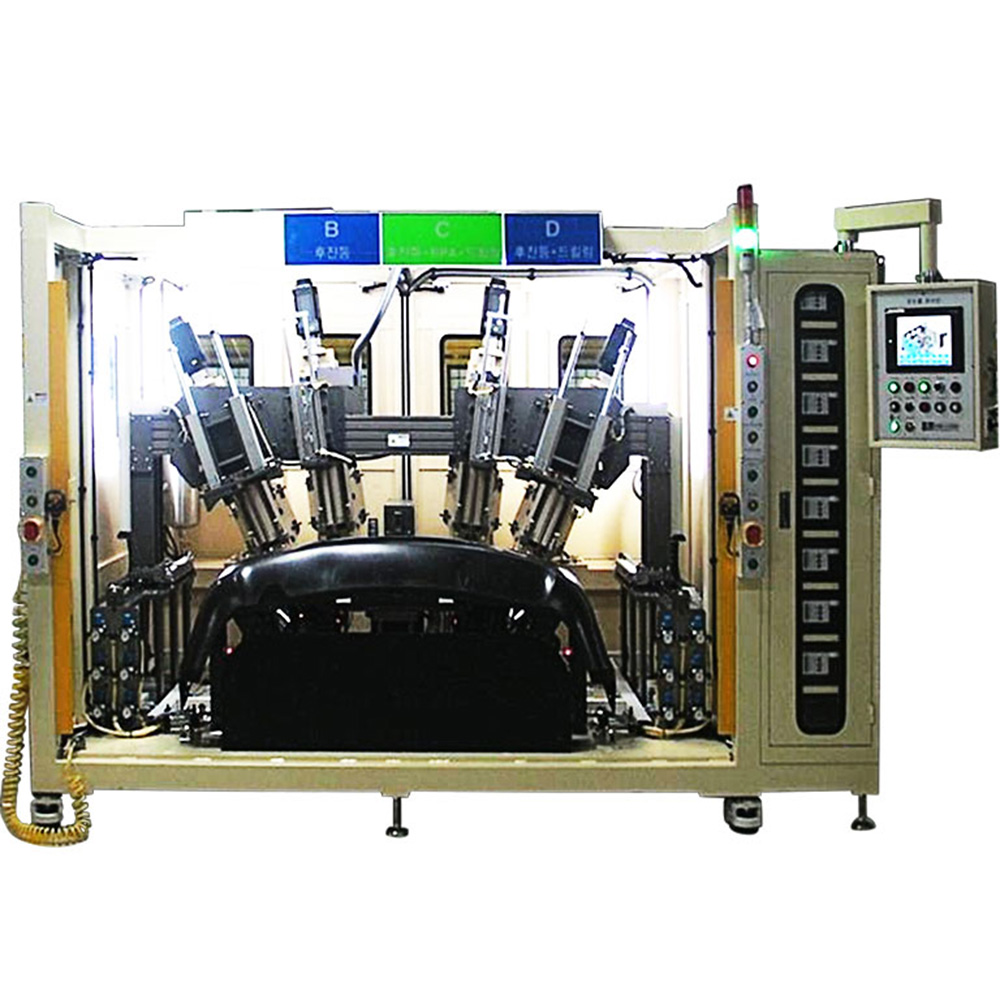

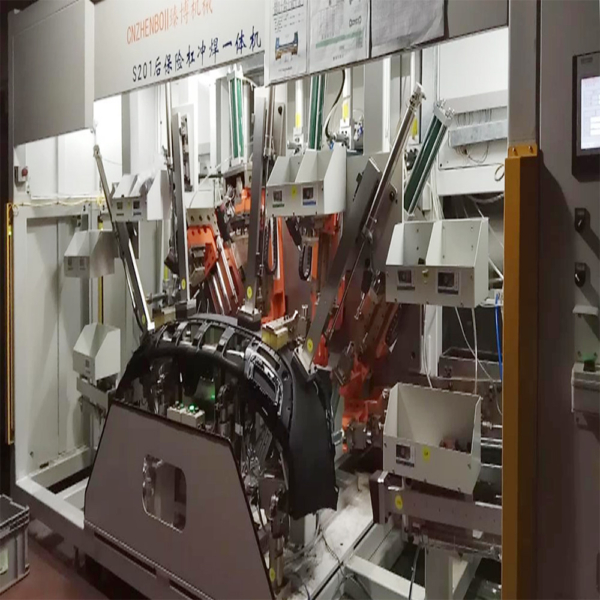

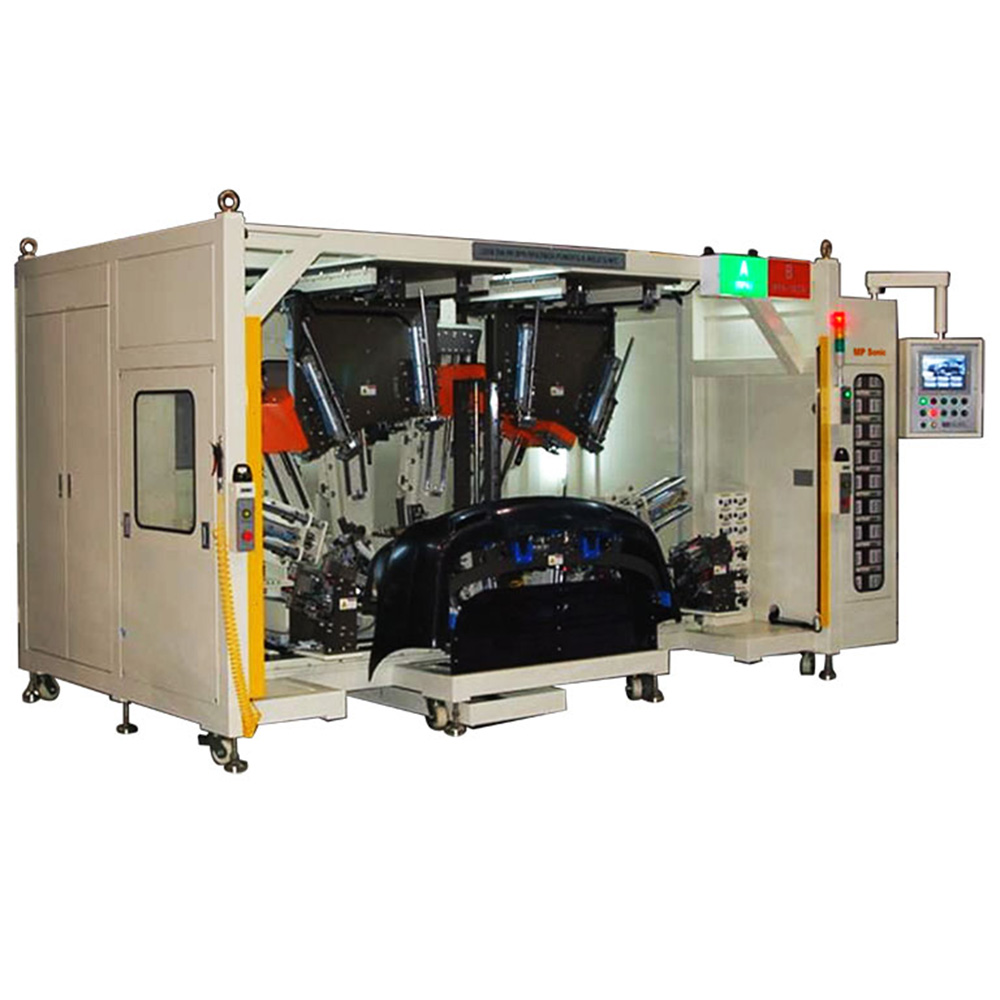

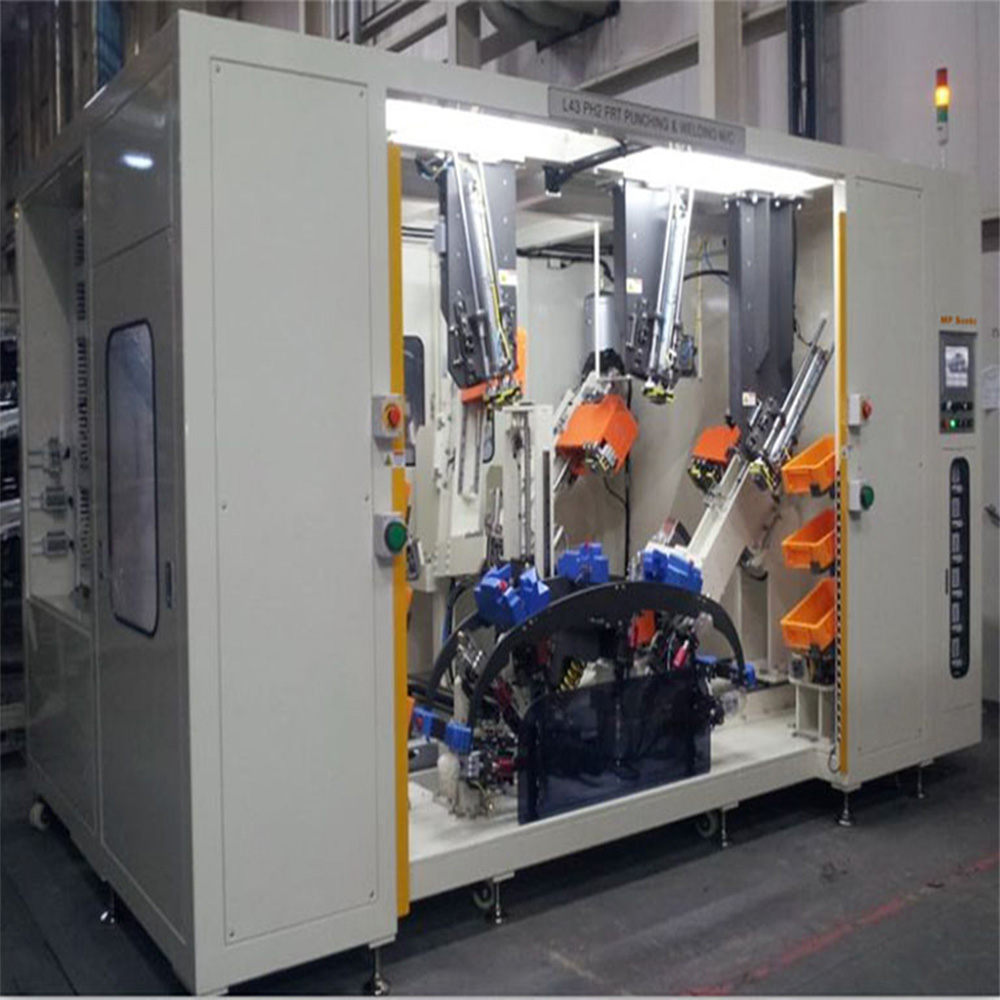

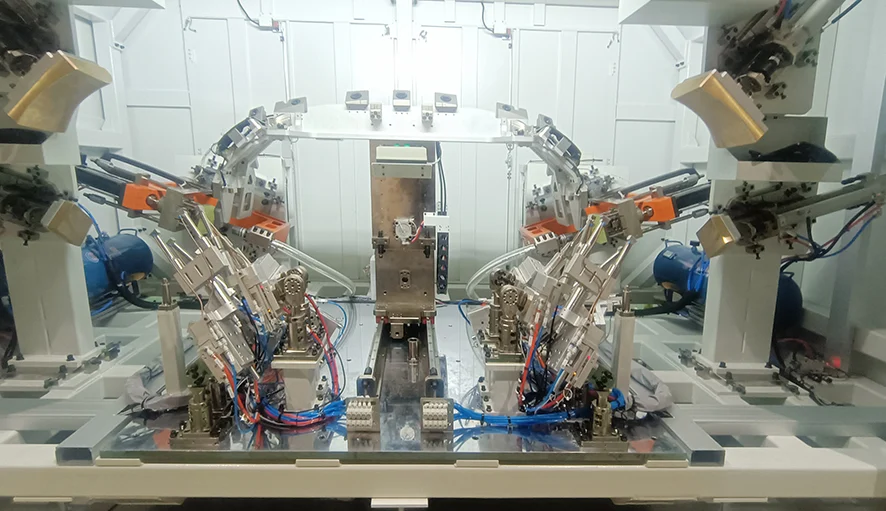

FASCIA punching & welding machine is a kind of equipment for automotive bumper finishing, which is applied to punch hole for radar, fog lamps etc and weld the bracket for radar, fog lamp, etc.

FASCIA punching & welding machine normally should be specially designed basing on requirement of each projects. Depends on the requirement, material of bumper and assembly process, the punching can be finished by hard-mechanical tooling or ultrasonic tooling, and the welding normally should be finished by ultrasonic. The forcing of punching normally can be servo motor controlled or booster-cylinders, while the ultrasonic welding normally forced by pneumatic cylinder systems.

I Main Features of MP Sonic FASCIA Punching & Welding Machine

1) High precision control;

2) Advanced ultrasonic system applied for stable and perfect process result;

3) Intelligent management of pumper punching & welding process;

4) I-Cloud remote service system applied for quick service in lower cost;

5) Stable machine fabricated for long time duration;

6) Multiple safety protection system for human and machine safety;

7) Sensor detection to ensure pumper and brackets loaded in right position.

II Optional:

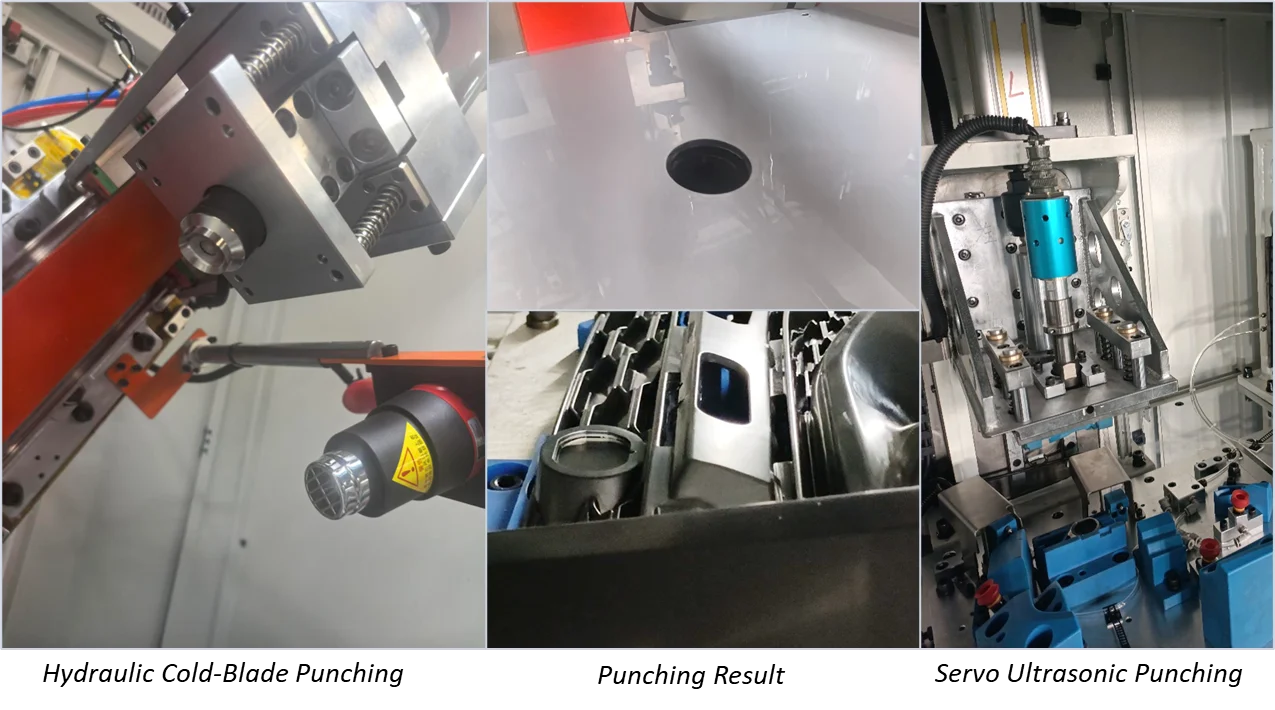

Punching by ultrasonic forced by servo system, or by cold blade forced by hydraulic.

How to decide punched by ultasonic or by cold blade?

Ultrasonic punching can protect painting of bumper from cracking cased by exxtnernal force, thus if it is painted before punching and welding, it is better choose ultrasonic punching.

III. General Technical

1) Power Source: 220V 1P AC 50/60Hz;

2) Air Source: 0.5~0.8MPa;

3) Ultrasonic system for welding: 35KHz 1200W;

4) Punching Procedure: by Ultrasonic (35~50KHz) or Booster-cylinder system.
