Description

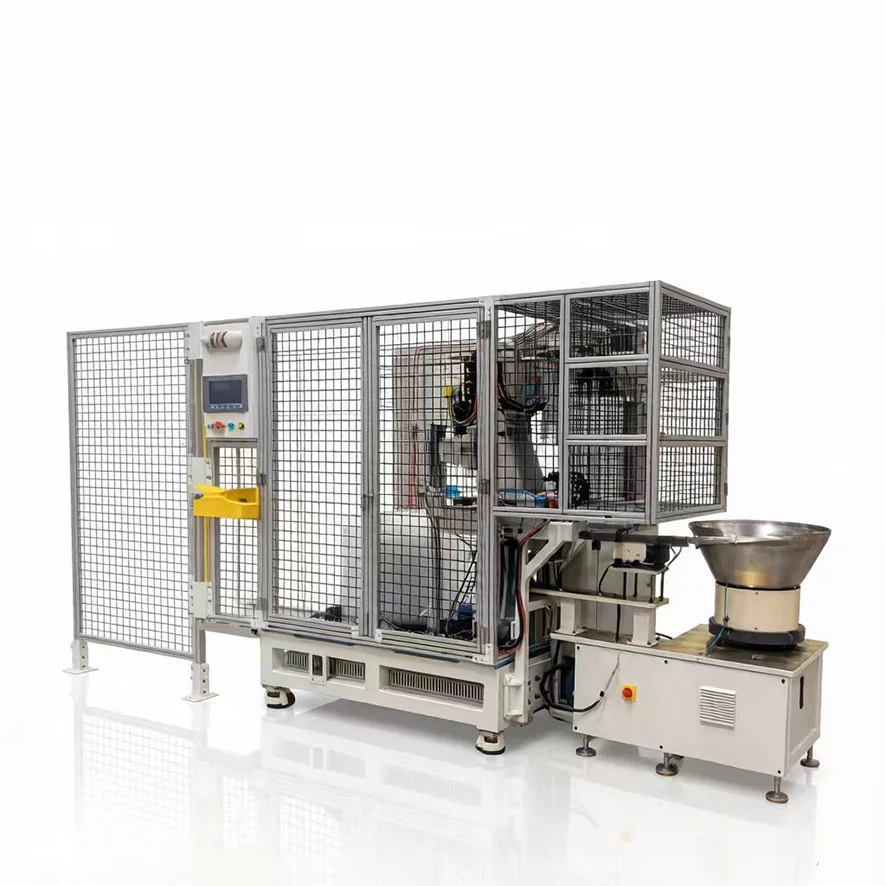

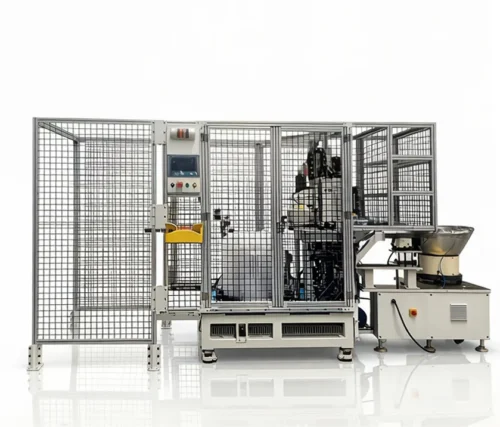

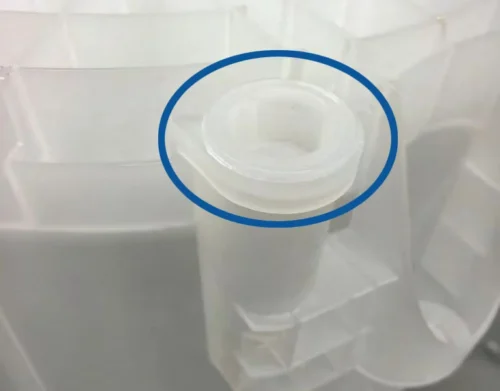

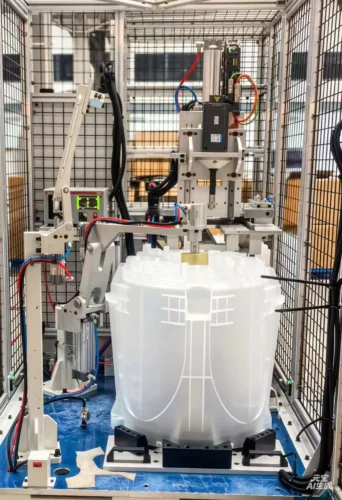

This machine is designed to weld plugs to cloth washer drum at the bottom hole formed by injection molding. Machine applies servo system to control welding spindle, welding spindle speed and cycle is settable, auto feeder system designed to machine. After welding, leak test is carried by machine. Machine designed three operation model: full auto mode, operator mode and manual mode. Complete cycle is about 40S.
Benefit:
Technical Data:
| Model Code | MPS-B02K-T1 |
| Dimension Layout | 4162*1289*2022 (mm) |
| Power Source | 380V, 3P, 50/60Hz, Can be specified. |
| Power Consumption | 3KW |
| Air Source Pressure | 0.6MPa |

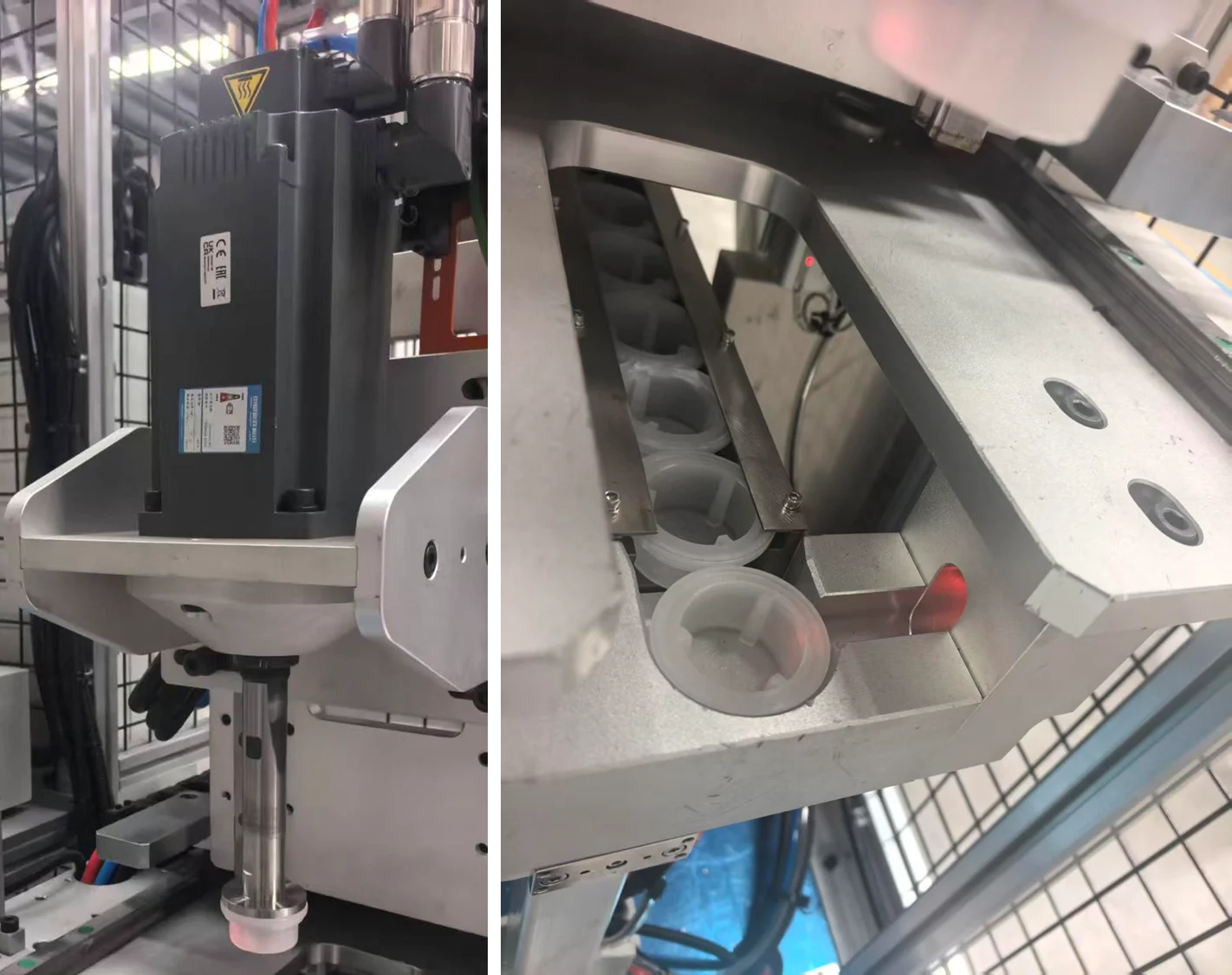

| Welding Method | Spin Welding by servo system |
| Welding Power | Max.1000KW |

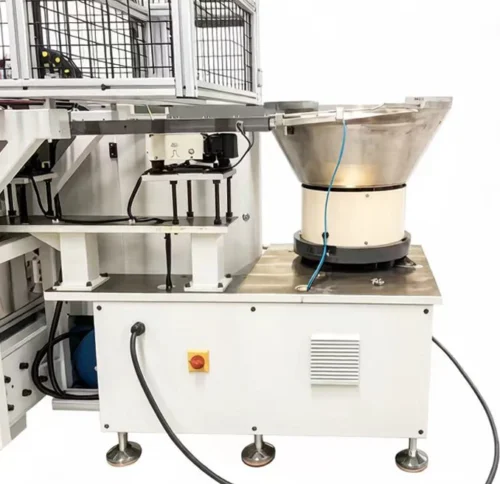

| Plug Feeder System | Automatic, oscillation hopper |

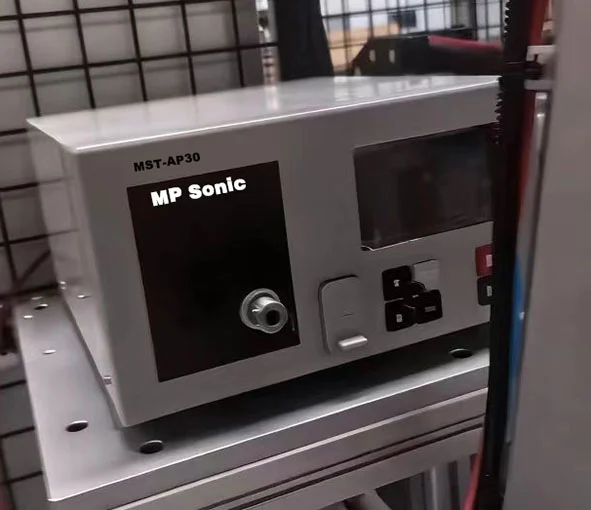

| Leak Test Method | Option: Air pressure or Vacuum |
| Operation Mode | Manual Mode-Maintenance; Operator Mode-Human Operation；Auto Mode-External IO Control Production. |
| Communication | Option: Modbus RTU,RS485, PROFINET, EtherCAT, I/O |
| Safety Level | According to ISO 12100 and ISO 13849-1, CAT.3/4 |
| Model Change-over | Automatic |
| Detection Type | Optical Sensor |
| Welding Control | Time/Round |
| Welding Set | RPM, Pressure & Depth |
Features Image:
