Description

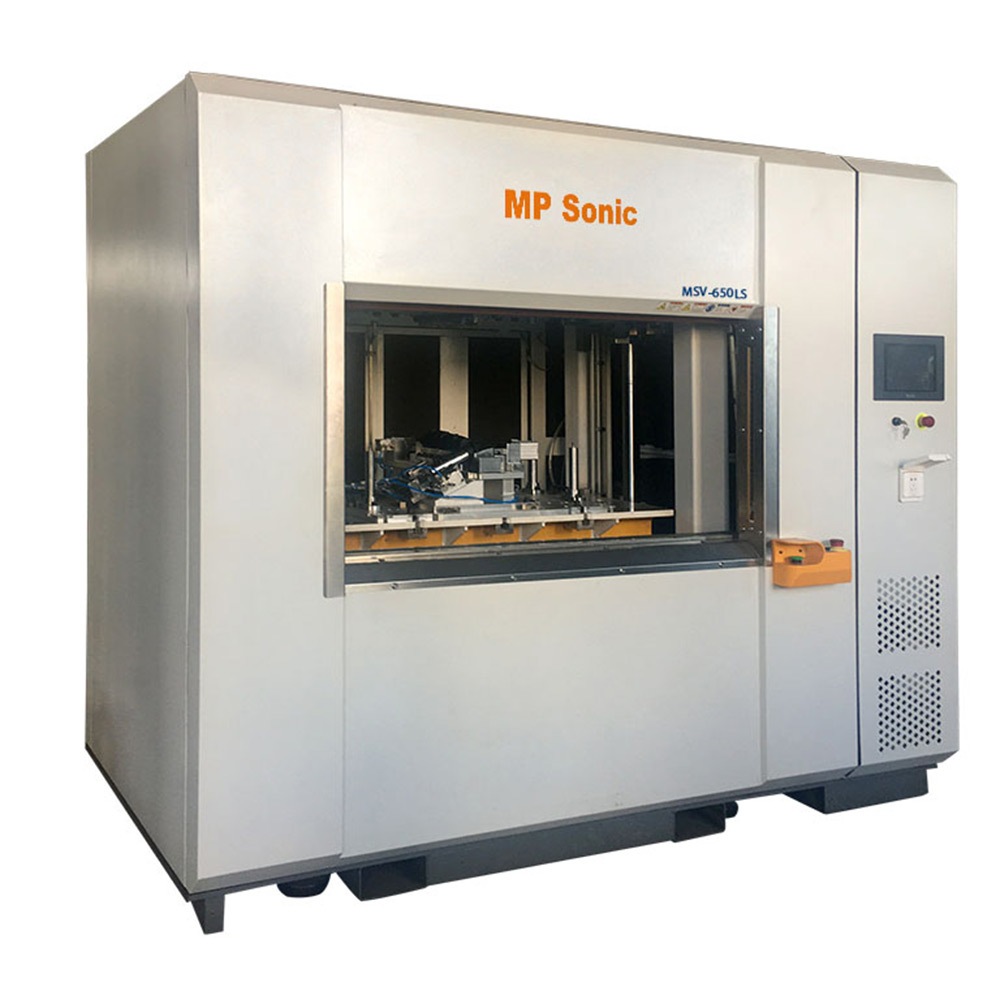

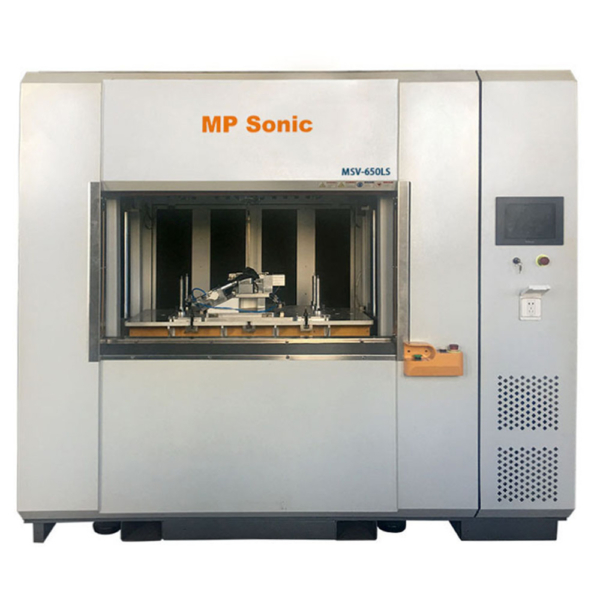

MSV-650LS is a medium specification which can be applied or the most range of plastic welding which is over than ultrasonic plastic welding ability, its viration loading ability of upper jig weight is 40KG. MVS-650LS linear vibration welder can be applied in house-held appliance industry such as welding for toilet lid, and automotive industry such weld tail lamp, instrument panel, air inlet manifold, etc.
MP-SONIC provide free plastic jointing design guide and analysis.
I. Main Features:
1. Auto frequency tuning after loading vibration welding tooling;
2. Welding process 8 steps control in precision for perfect plastic welding;
3. Welding control in time and depth mode;
4. 80 sets of welding parameter storage;
5. Welding result analysis help quality management;
6. Internet function is available for some model;
7. Printing function is designed;
8. I-cloud remote service system is equipped with machine for fast service in lost cost.
II. Optional Feature: IR preheating system.
III. Specification:
| Model | MSV-650LS |
| VibratIon Head | |
| Weight upper tool | 40 Kg |
| Welding area(approx. / for PP) | 200 ㎠ |
| Amplitude(peak to peak) | 0.8∼1.8 mm |
| Frequency | 210∼280 Hz |
| Spring Quantity | 4 |
| Magnetic Quantity | 1 |
| Machine | |
| Machine Size : Width | 2605 mm |
| Depth | 1286 mm |
| Height | 2290 mm |
| Front Door Opening : Width | 1400 mm |
| Height | 745 mm |
| Drive Platen/upper : Width | 870 mm |
| Depth | 440 mm |
| Lift Table Size : Width | 1300 mm |
| Depth | 600 mm |
| Table stroke/Max. | 500 mm |
| Max. distance between lift table | 735 mm |
| Vibration head | |
| Table speed | 250mm/s |
| Clamp force | 15.5KN |
| Weight | ≒4,000 kg |
| Sound pressure level | <=85db |
| Electrical | |
| Main voltage(3P)/In put | AC380V ,440V |
| Power consumption | 23 KVA |
| Maximum Power/Out Put | 15 Kw |
| Control Voltage | DC 24V |
