Description
MSP-G series Handled welder @ MP Sonic is a portable ultrasonic spot welding machine for thermoplastic spot welding, staking and cutting, in frequency of 28KH, 30KHz, 35KHz or 40KHz, designed in small size and light weight for easy carrying and storage.
Portable ultrasonic welding machines, also called handheld ultrasonic welder, normally is in 28KHz, 30KHz, 35KHz, 40KHz in power of 800~1200W. Because of its benefit of light weight & small size, easy operation and economical investigation, etc, handheld ultrasonic welder is welcomed by different production industries, such as automotive industry, electronics industry, garment industry, etc.
Read More about Ultrasonic Application>>
Handheld welder normally is applied for plastic spot welding, plastic staking (riveting) and ultrasonic cutting. Machine also can be installed in automatic line or semi-automatic machine to realize difference application.

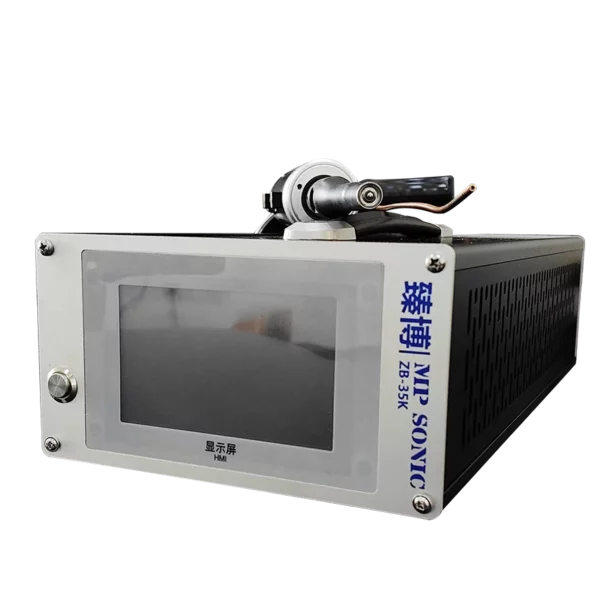

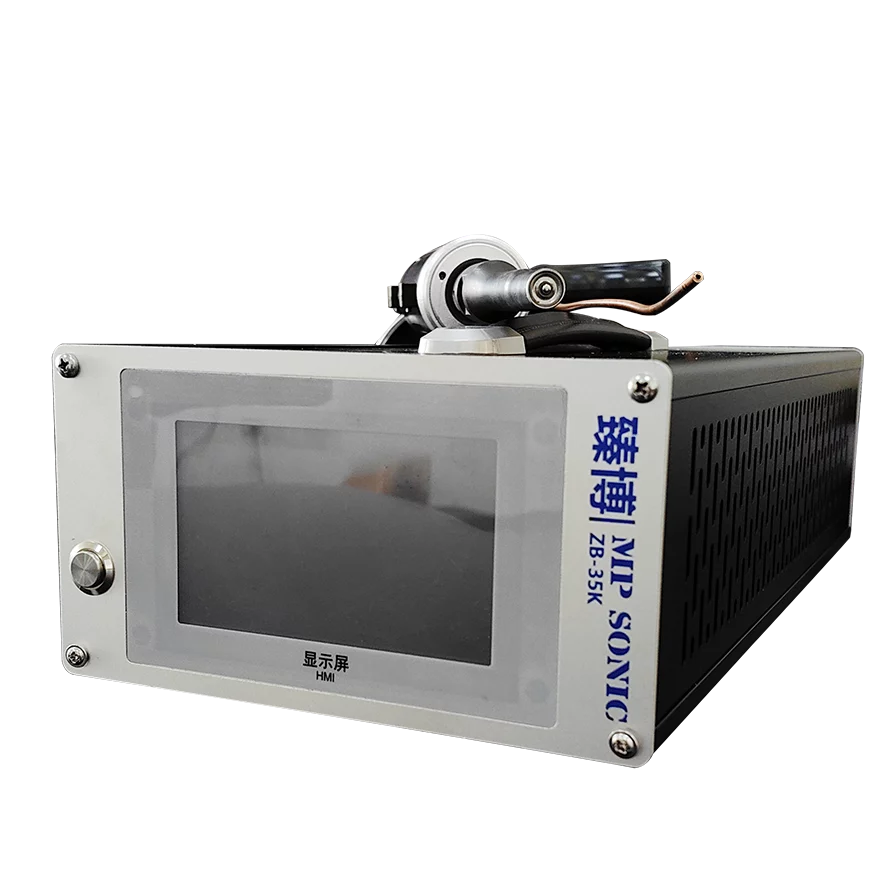

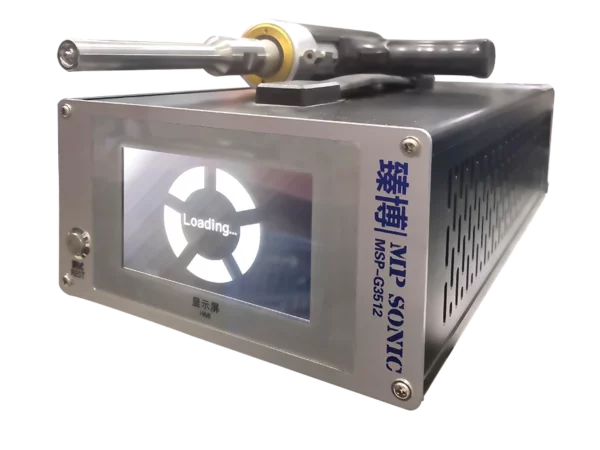

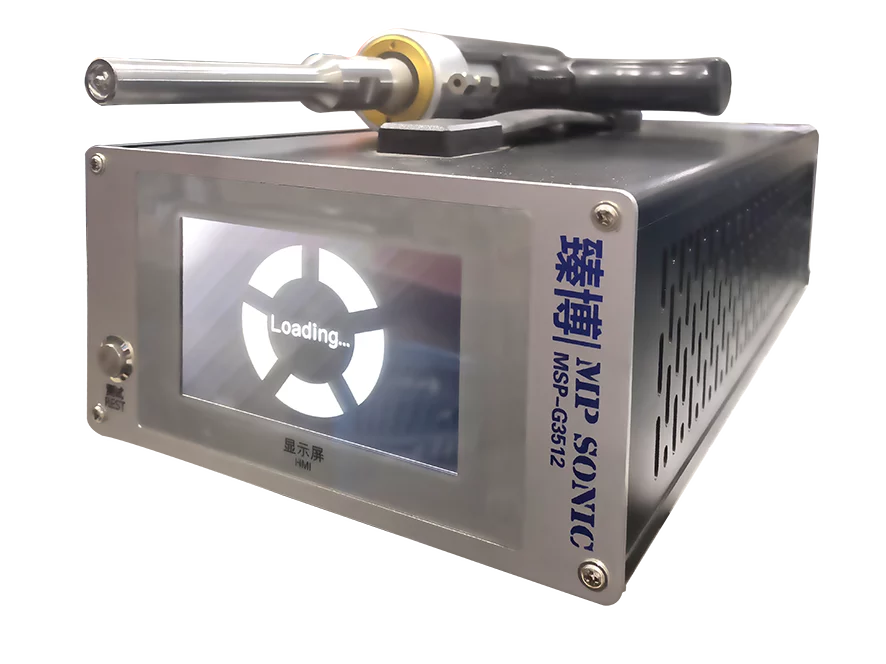

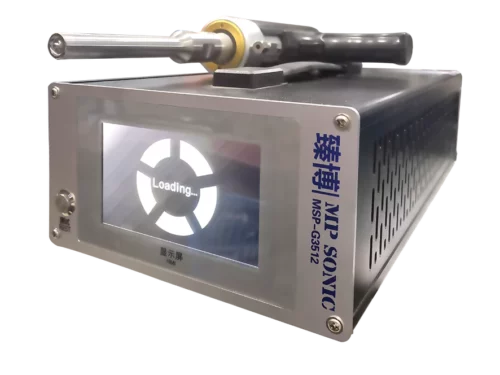

Machine Images
Benefit:
Specitication:
| Model: | MSP-G2812 | MSP-G3010 | MSP-G3512 | MSP-G4008 |
| Power Source: | 220V, 1P, AC, 50/60Hz | |||
| Ultrasonic Frequency: | 28KHz | 30KHz | 35KHz | 40KHz |
| Rated Power Output: | 1200W | 1000W | 1200W | 800W |
| Max Welding Ability | Depends on Material & Application | |||
| Generator Weight: | 4.6KG | |||
| Ultrasonic Gun Weight: | 0.8KG | 0.7KG | 0.7KG | 0.7KG |
| Rated Amplitude (without Booster): | ~25μm | ~20μm | ~12μm | 9μm |
| Generator Measurement | 200mm*400mm*105mm | |||
| Application | Thermoplastic Spot Welding, Staking & Ultrasonic Cutting | |||
| Ultrasonic Horn Material: | Spot Welding/Staking-Aluminum/Titanium/Steel, Cutting-Titanium/Steel | |||
| Amplitude Adjustment | 10~100%, by 1% | |||
| Welding Mode: | Time Mode, Energy Mode, External Trigger | |||
| Welding Step: | 3 Steps | |||
| Welding Cooling: | Air-blower | |||

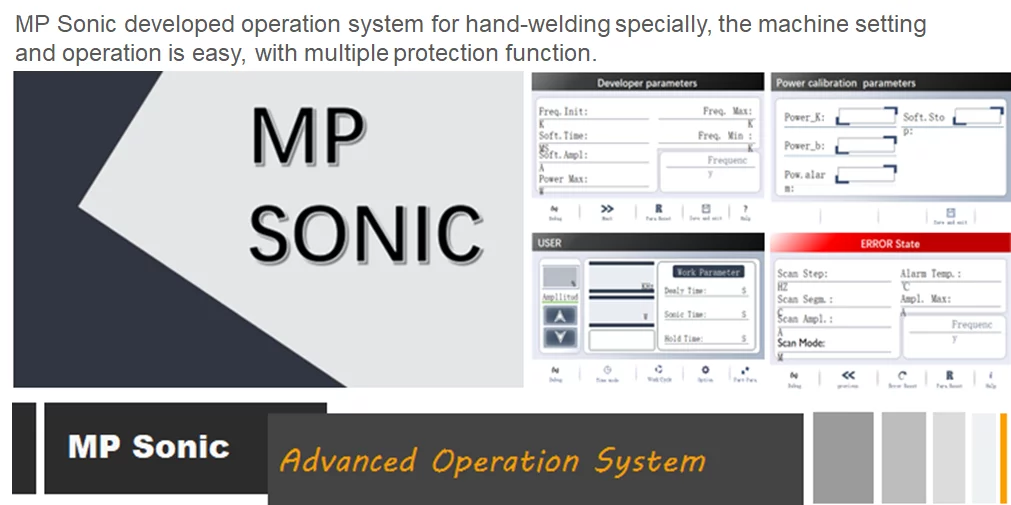

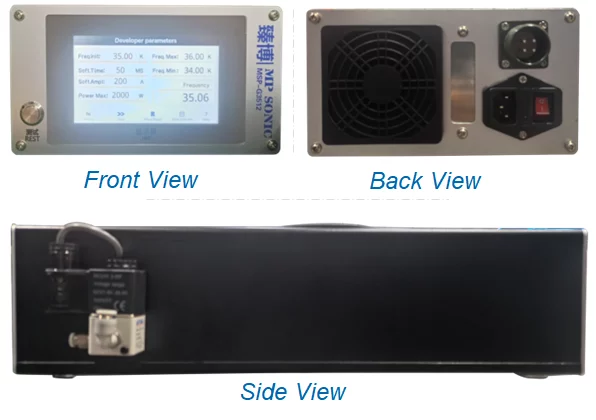

Main Feature

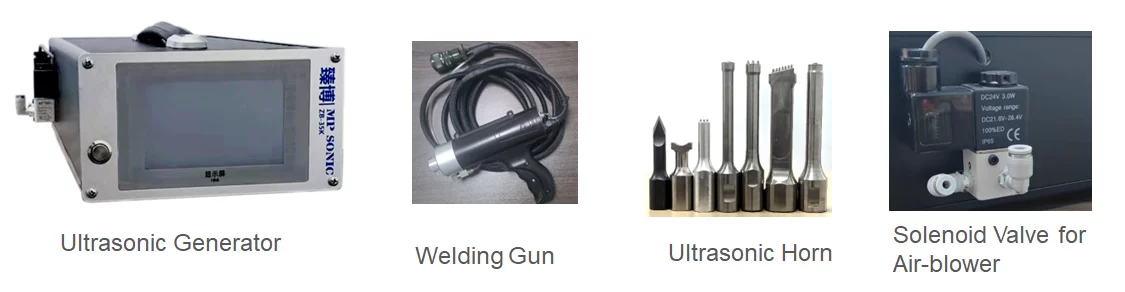

Critical Parts
FAQ:
What is the advantage of anti-resonance ultrasonic system?
MP Sonic: by anti-resonance system, the high loading to system, the higher power output can reach, means anti-resonance system can maximize the ability of system;
By what technique MP Sonic ensure its system reliability?
MP Sonic: MP Sonic PLL (Phase Lock Loop) scans ultrasonic tooling state and adjust parameters intime dynamically to keep system normal work.
What certificate does MP Sonic have?
MP Sonic: CE, EAC, etc.
What is the leading time of machine?
MP Sonic: 7~10 working days.
What is the material of ultrasonic tooling?
MP Sonic: Aluminum, Titanium or Steel.
Is there booster in MP Sonic handheld welder?
MP Sonic: Booster is optional depends on application.
How is the packing of machine?
MP Sonic: Carton box + Plywood case.
